PYRODUR® 60-10 10MM Fire-Resistant Internal Glass
Original price was: £733.12.£440.64Current price is: £440.64. inc VAT m2
Laminated Glass - Minimum Charge 0.5m2 (per panel)
Toughened / Float Glass - Minimum Charge 0.3m2(per panel)
| Fire Insulation (Mins): 15 | |
| Fire Integrity (Mins): 60 | |
| Installation Uses: Timber | |
| Environmental Uses: Internal | |
| Glass Thickness: 10 | |
| Impact Class: |
- Description
- Additional Information
- FAQ
- Fire Rated
- Reviews (0)
Description
FIRE RESISTANT GLASS MUST ONLY BE USED AS PART OF AN APPROPRIATELY APPROVED GLAZING SYSTEM.
Introducing PYRODUR® 60-10 10MM Fire-Resistant Internal Glass: The Ultimate Solution for Unmatched Fire Safety and Clarity
Product Description:
PYRODUR® 60-10 10MM Fire-Resistant Internal Glass is a top-of-the-line fire-resistant glass designed for ultimate fire safety and clarity. This innovative glass is made with advanced technology and provides 60 minutes of integrity and 15 minutes insulation performance (EW60), ensuring that occupants and property are safe in the event of a fire. The 10mm thickness of the glass is designed to be installed in internal applications such as fire doors, fire-resistant partitions, and screens.

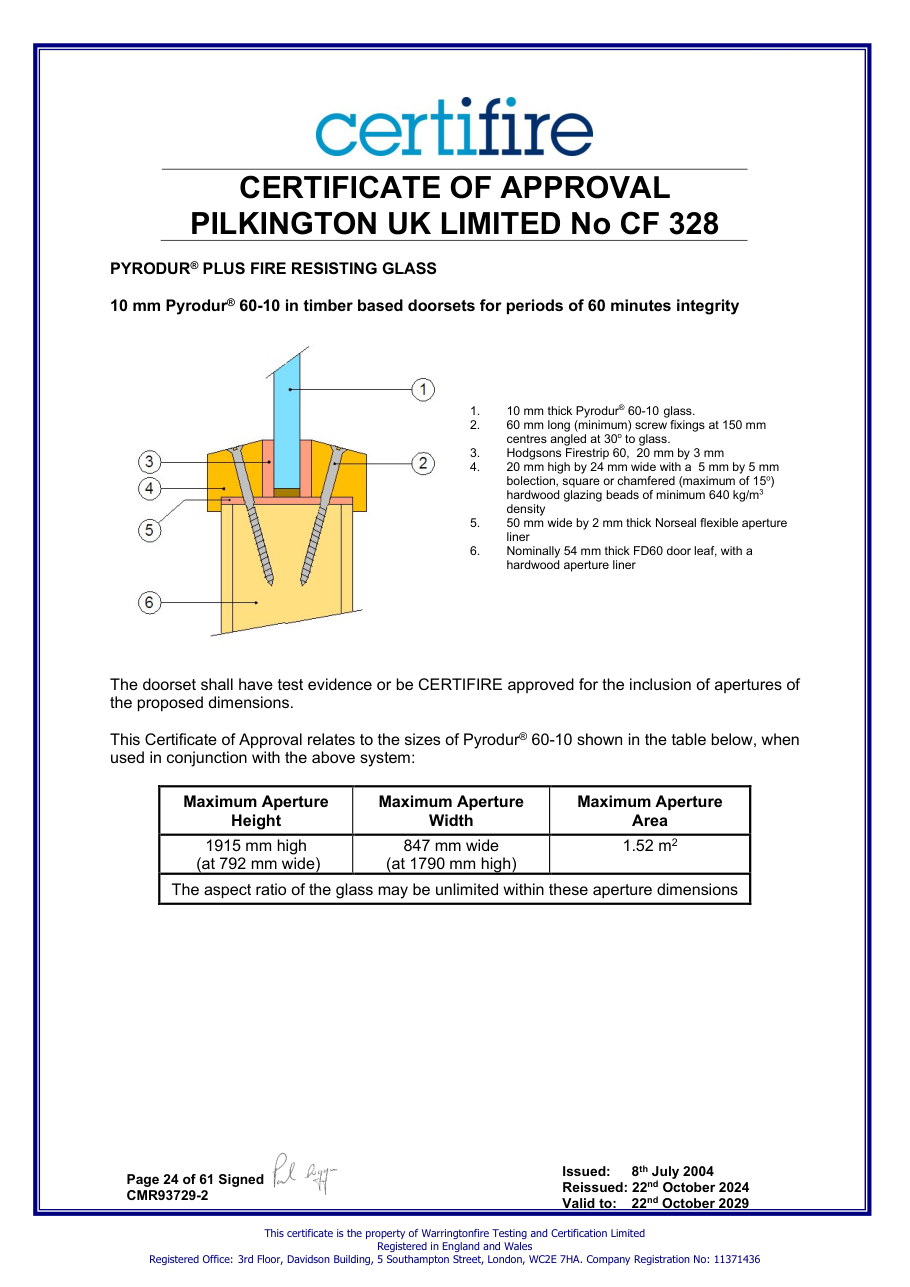

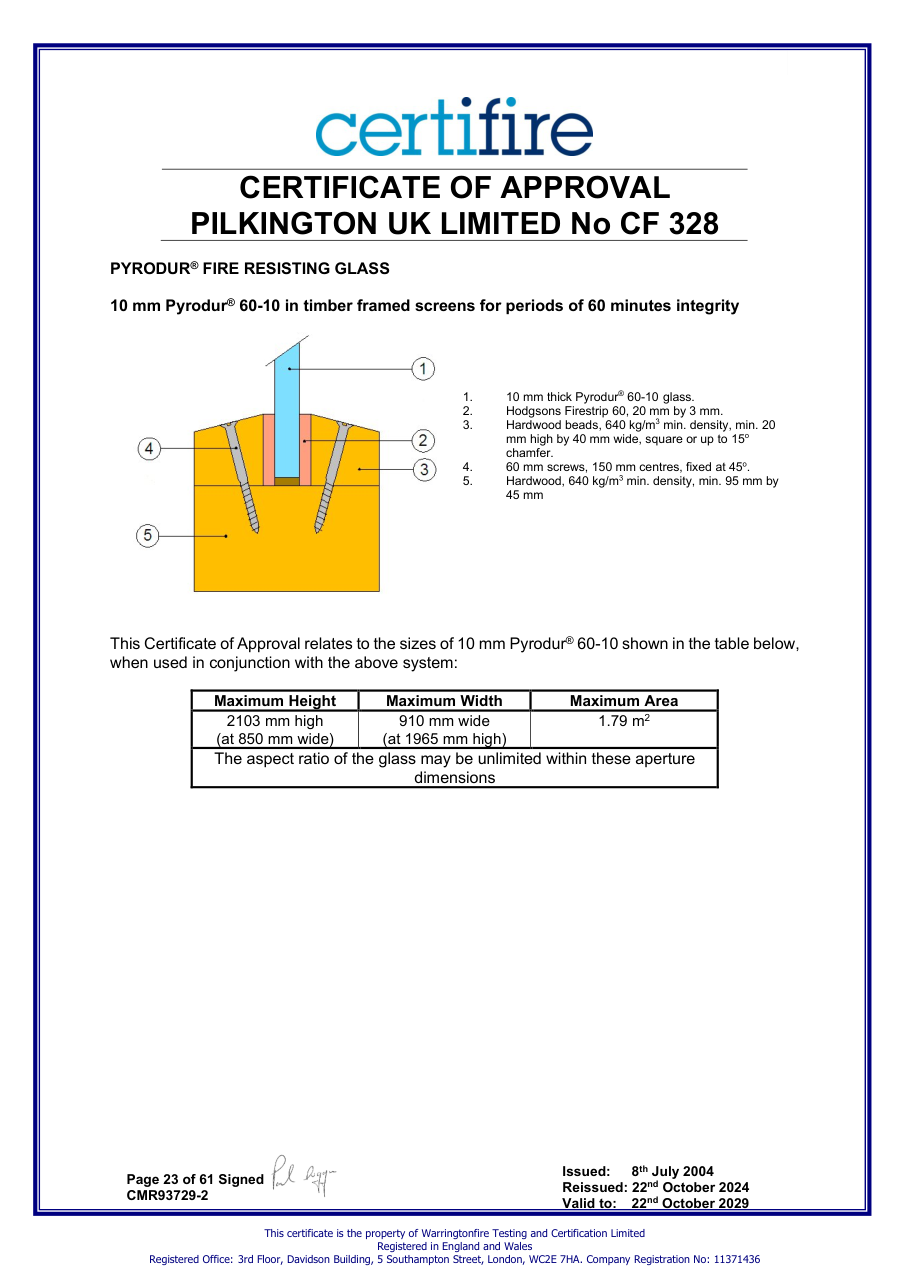

Datasheet:
For detailed technical specifications, installation instructions, and maintenance guidelines, please refer to the comprehensive PYRODUR® 60-10 10MM Fire-Resistant Internal Glass datasheet: PYRODUR_60-10_10MM_Datasheet.pdf
Key Features:
- Unmatched Fire Safety: PYRODUR® 60-10 10MM is designed to provide maximum protection against fire hazards, with 60 minutes of integrity and insulation performance (EI60).
- High Clarity: This glass is designed to offer crystal-clear clarity, allowing ample natural light to penetrate the space and offering an unobstructed view of the surroundings.
- High Light Transmission: PYRODUR® 60-10 10MM glass allows up to 86% of natural light to pass through, maintaining its fire-resistant properties while providing bright and clear interiors.
- Versatile Application: This fire-resistant glass is suitable for a wide range of applications, including doors, partitions, windows, and facades in both residential and commercial settings.
- Easy Installation: PYRODUR® 60-10 10MM is compatible with approved glazing systems, making it a hassle-free choice for your fire-resistant glazing needs.
Usage Cases:
PYRODUR® 60-10 10MM Fire-Resistant Internal Glass is ideal for a variety of settings where fire safety and clarity are paramount, including:
- Office Buildings: Enhance fire protection in office spaces with PYRODUR® 60-10 10MM glass installed in partitions, doors, and windows.
- Educational Institutions: Safeguard students and staff by using this fire-resistant glass in classrooms, laboratories, and libraries.
- Healthcare Facilities: Hospitals, clinics, and nursing homes can benefit from the added fire protection and clarity offered by this glass.
- Residential Buildings: Ensure the safety of your home and loved ones with PYRODUR® 60-10 10MM glass installed in doors, windows, and partitions.
- Hospitality and Retail: Hotels, restaurants, and retail outlets can maintain an inviting atmosphere while ensuring fire safety by incorporating PYRODUR® 60-10 10MM in their design.
Choose PYRODUR® 60-10 10MM Fire-Resistant Internal Glass to achieve unmatched fire safety and clarity in your space. For any additional information or queries, please feel free to contact our customer support team at [email protected]
Additional information
| Weight | 27 kg |
|---|---|
| Brand | PyroDur |
| Fire Insulation (Mins) | |
| Fire Integrity (Mins) | |
| Environmental Uses | Internal |
| Sound Reduction | |
| Glass Thickness | |
| Installation Uses |
Fire-Rated FAQ
Why do I need fire rated glass?
Fire rated glass is often required by UK building regulations in certain areas to improve fire safety, protect people, and limit property damage. It can also offer peace of mind.
What are the different types of fire rated glass?
There are several types of fire rated glass, including:
- Intumescent glass: Expands when heated, creating a protective barrier.
- Wired glass: Contains a wire mesh that holds the glass together if it cracks.
- Gel-filled glass: Contains a clear gel that turns opaque when heated.
- Ceramic glass: Made from high-temperature ceramics for excellent fire resistance.
Is fire rated glass required by law in the UK?
Yes, UK building regulations often require fire rated glass in specific places, like fire doors, fire exits, protected stairwells, and compartment walls. The exact requirements depend on the building’s purpose and layout.
Why should I choose Pyroguard fire-rated glass for my project?
Pyroguard is a leading manufacturer of fire-rated glass known for its high-quality products and innovative solutions. Their range includes various fire-resistant glass types with different performance characteristics, suitable for various applications in both commercial and residential settings. Pyroguard prioritises safety and performance, offering reliable protection against fire and smoke spread. They also provide technical support and resources to assist with product selection and installation. You can explore their range of products on the Pyroguard website.
Additionally, we at BuyGlass.co offer a selection of Pyroguard products, such as the 19mm Pyroguard EI60, providing excellent fire resistance and insulation for up to 60 minutes.
If you’re looking for a reputable and trusted brand with a proven track record in fire safety, Pyroguard is a solid choice for your project.
What are the fire rating options available for Saint-Gobain Contraflam® fire-rated glass?
Saint-Gobain Contraflam® offers a comprehensive range of fire ratings, from E30 to EI120, catering to different applications and building regulations. You can explore the various fire rating options and technical specifications on the Contraflam® product page on the Saint-Gobain website.
What are the benefits of using Saint-Gobain Contraflam® fire-rated glass for my project?
Saint-Gobain Contraflam® is renowned for its versatility and aesthetic appeal. It offers a wide range of fire ratings and configurations, including clear, tinted, and patterned options, making it suitable for various architectural styles and applications. Discover the benefits of Contraflam® on the Saint-Gobain website.
How does Pilkington Pyrostop® fire-rated glass compare to other brands?
Pilkington Pyrostop® is a leading brand of fire-rated glass known for its high performance and extensive range of options. It consistently meets or exceeds industry standards and offers excellent fire resistance, making it a popular choice for both commercial and residential projects. You can learn more about Pilkington Pyrostop® on their website.
Where can I buy fire rated glass in the UK?
You can buy high-quality fire rated glass from BuyGlass.co. We offer a wide selection of fire rated glass products, expert advice, and advice on professional installation services across the UK.
What is the difference between integrity and insulation in fire rated glass?
Integrity means the glass’s ability to contain flames and smoke, while insulation means its ability to reduce heat transfer. Some fire rated glass offers both integrity and insulation (Ei), while others may only provide integrity (E).
How long does fire rated glass last?
Fire rated glass has a long lifespan, often over 20 years with proper care and maintenance. Regular checks are recommended to ensure it stays in good condition and keeps its fire resistance.
Does fire rated glass need special maintenance?
Fire rated glass typically needs minimal maintenance, similar to regular glass. It’s important to clean it with non-abrasive materials and avoid harsh chemicals that could damage the surface or coatings.
Is fire rated glass more expensive than regular glass?
Yes, fire rated glass is usually pricier than regular glass due to the special materials and manufacturing processes. However, it offers superior protection and can be a worthwhile investment for safety and peace of mind.
Does fire rated glass block heat?
Some types of fire rated glass, especially those with insulation, can greatly reduce heat transfer, making them suitable for applications where thermal insulation is important.
What size fire rated glass can I get?
Fire rated glass comes in various sizes to suit your needs, however, it is important that you contact us before ordering to ensure that your made-to-measure fire rated glass is within the certification criteria.
What thickness of fire rated glass do I need?
The required thickness of fire rated glass depends on the specific fire rating and where it will be used. Regulations set minimum thicknesses for different fire ratings. Ask our experts for help choosing the right thickness for your project.
Can I cut fire rated glass myself?
No, fire rated glass shouldn’t be cut after manufacture as it can affect its fire resistance. It’s important to order the correct size for your needs.
Do I need fire rated glass in my home?
While not always mandatory in homes, fire rated glass is recommended for areas like internal doors leading to garages or high-risk rooms. It can enhance fire safety and provide peace of mind.
How much does fire rated glass cost?
The cost of fire rated glass varies depending on several factors, including the type of glass, size, thickness, fire rating, and extra features like insulation or soundproofing. Contact us for a tailored quote.
What does fire rating E30 mean? (or E60, Ei30, etc.)
Fire ratings like E30 show the time (in minutes) the glass can resist fire while maintaining integrity (E) and/or insulation (i). For example, E30 means the glass can hold back flames and smoke for 30 minutes.
What are the fire rated glass regulations in the UK?
UK fire rated glass regulations are mainly outlined in Approved Document B (fire safety) of the Building Regulations. These regulations specify where fire-resistant glazing is needed and the required fire ratings.
How does fire rated glass work?
Fire rated glass is made with special materials or construction methods that help it stay strong in extreme heat. Some types also insulate, reducing heat transfer.
What is fire rated glass?
Fire rated glass is a special type of safety glass designed to withstand high temperatures and stop fire and smoke from spreading for a set amount of time. It’s essential for protecting escape routes and containing fires.
Understanding Fire Rated Glass: A Comprehensive Guide
Fire rated glass is a crucial component in modern building design, providing both aesthetic appeal and essential safety features. In this blog post, we will explore the various aspects of fire rated glass, including its types, applications, and the benefits it offers for enhancing fire safety in buildings. We will also discuss the fire rated glass price, the leading fire rated glass manufacturers, and the key considerations for fire rated glass installation.
What is Fire Rated Glass?
Fire rated glass, also known as fire resistant glass or fireproof glass, is specially designed to withstand high temperatures and prevent the spread of flames and smoke during a fire. This type of glass is integral to fire safety systems, providing vital barriers in buildings to contain and control fire.
Types of Fire Rated Glass
There are several types of fire rated glass, each with specific characteristics and applications:
- Fire Rated Window Glass: Used in windows to prevent the spread of fire from one room to another.
- Fire Rated Glazing: A comprehensive system that includes glass and framing to meet fire safety standards.
- Fire Rated Glass Doors: Doors that incorporate fire resistant glass panels to enhance safety while allowing visibility.
- Fire Rated Glass Panels: Standalone glass panels used in various architectural applications to provide fire resistance.
- Fire Rated Glass Partitions: Used to create fire-resistant barriers within open-plan spaces.
Applications of Fire Rated Glass
Fire rated glass is versatile and can be used in various applications, including:
- Fire Resistant Glass for Windows: Enhances safety without compromising natural light.
- Fire Resistant Glass for Doors: Common in both residential and commercial buildings for added protection.
- Fire Resistant Glazing Systems: Essential for creating fireproof barriers in high-risk areas.
- Fire Rated Glass Partitions: Used in offices and public buildings to ensure safety while maintaining an open feel.
Benefits of Fire Rated Glass
Using fire rated glass in building design offers numerous benefits:
- Enhanced Safety: Prevents the spread of fire and smoke, protecting lives and property.
- Aesthetic Appeal: Maintains the visual openness and design integrity of modern buildings.
- Compliance: Meets stringent fire safety regulations and standards.
- Versatility: Suitable for a wide range of applications, from windows and doors to partitions and panels.
Different Fire Ratings and How They Work
Fire rated glass comes with various fire ratings, which indicate the duration the glass can withstand fire exposure. These ratings are crucial for determining the appropriate use cases for the glass. The ratings are usually expressed in minutes, such as 30, 60, 90, and 120 minutes.
- 30-Minute Fire Rating: This rating means the glass can withstand fire exposure for 30 minutes. It is typically used in fire rated window glass and fire rated glass doors in residential and low-risk commercial applications.
- 60-Minute Fire Rating: Glass with a 60-minute rating offers an hour of protection and is suitable for higher-risk areas such as stairwells, corridors, and fire rated glass partitions in commercial buildings.
- 90-Minute Fire Rating: This rating is used in areas that require extended protection, such as large commercial buildings, schools, and hospitals. It is ideal for fire resistant glazing systems that need to provide a higher level of safety.
- 120-Minute Fire Rating: Providing up to two hours of protection, this glass is used in high-risk areas where the potential for prolonged fire exposure exists. It is suitable for critical infrastructure and buildings with stringent fire safety requirements.
Fire Rated Glass Price
The price of fire rated glass varies depending on factors such as thickness, size, and the specific fire rating required. It is important to consult with fire rated glass manufacturers and suppliers to get accurate pricing and ensure you are getting the best product for your needs.
Leading Fire Rated Glass Manufacturers and Suppliers
When selecting fire rated glass, it is crucial to choose reliable manufacturers and suppliers who offer certified products. Some of the top sources include:
- 7.2mm Pyroguard
- 7mm Pyrodur 30/105 Fire Resistant Internal Glass
- 6mm Pyroguard Firesafe T-E30
- Pyrodur 60-10 10mm Fire Resistant Internal Glass
Fire Glass Certification
Ensuring that your fire rated glass is properly certified is crucial for compliance and safety. Certification verifies that the glass meets rigorous standards and has been tested for fire resistance and durability.
Fire Rated Glass Installation
Proper installation is essential for the effectiveness of fire rated glass. It is recommended to use professional installers who are experienced with fire rated glazing systems. This ensures that the glass performs as intended in the event of a fire.
Fire Safety Glass Requirements
Understanding the specific requirements for fire safety glass in your building is critical. These requirements can vary depending on the building type, location, and local fire safety regulations. Consulting with experts in fireproof glazing can help you navigate these requirements and ensure compliance.
Conclusion
Fire rated glass plays a vital role in modern building safety, offering both protection and aesthetic benefits. Whether you are looking to install fire resistant glass for windows, doors, or partitions, understanding the types, benefits, and installation requirements is essential. By choosing certified products and professional installation, you can ensure the highest level of fire safety in your building.
For more information and to explore a wide range of fire rated glass options, visit BuyGlass.co.
