Pyroguard 15mm — fire-rated glass cut to size
Request Pyroguard 15mm fire-rated glass cut to size for your project. Your supplier confirms availability, permitted dimensions and the complete tested glazing system before ordering.
Pyroguard 15mm has 9 recorded system options in the imported selector. This page brings together its performance records, installation conditions and certificate sources so you can discuss the exact system with a specialist.
Discuss Pyroguard 15mm
Keep this model with your basket request. The supplier can check the evidence, ask for drawings or suggest an alternative. This does not approve a glass type or instruct manufacture.
Plan your fire-glass panels
Keep this model selected while adding different sizes and quantities. Each panel needs supplier verification.
Dimensions can be left blank if you need advice. Contact details are collected once in the basket.
Minimum aperture size: not recorded here; supplier to confirm. Maximum aperture size: depends on the exact tested system below. Width × height pairs, area and certificate conditions apply together; no rotation or combined maxima. Stock sheets do not establish permitted aperture dimensions.
Recorded maximum sizes for Pyroguard 15mm
System c45 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 4.68m². Certificate dimension graph also applies. Complete-system verification required.
System c46 · Door · Steel · 30/30: width not recorded; height not recorded; maximum area 4.5m². Certificate dimension graph also applies. Complete-system verification required.
System c47 · Screen · Timber · 30/30: width not recorded; height not recorded. Certificate dimension graph also applies. Complete-system verification required.
System c48 · Door · Steel · 30/30: width not recorded; height not recorded; maximum area 4.42m². Certificate dimension graph also applies. Complete-system verification required.
System c49 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 5.96m². Certificate dimension graph also applies. Complete-system verification required.
System c50 · Door · Steel · 60/30: width not recorded; height not recorded; maximum area 2.94m². Certificate dimension graph also applies. Complete-system verification required.
System c51 · Door · Timber · 60/30: width not recorded; height not recorded; maximum area 0.65m². Certificate dimension graph also applies. Complete-system verification required.
System c52 · Screen · Timber · 60/30: width not recorded; height not recorded; maximum area 3m². Certificate dimension graph also applies. Complete-system verification required.
System c53 · Door · Steel · 60/60: width not recorded; height not recorded; maximum area 4.13m². Certificate dimension graph also applies. Complete-system verification required.
Online enquiry entry range: 1–20,000mm per dimension, not a manufacturing or certified size range. Unknown sizes may be left blank in Simple mode.
Panel 1
Supplier quotation and complete-system review required.
What the recorded product covers
The selector lists this Pyroguard model for Screen, Door applications, using Steel, Timber framing within the individual recorded systems. These are separate options: the frame, application and performance from different rows cannot be combined to create a new approval.
Recorded glazing arrangements: IGU, Single. Location descriptions: Internal or External. Read the matching record below for its exact construction and restrictions.
Performance is specific to each system
The source lists integrity / insulation minute pairs: 30/30, 60/30, 60/60. These figures are retained in their recorded form. They do not automatically establish an EN 13501 E, EW or EI classification, or approval for your door, screen or window.
Request made-to-measure fire-rated glass
For your cut-to-size fire glass enquiry, have the finished aperture width and height, intended use, frame material and any architect’s specification ready if you know them. Tell the specialist whether the glass is internal or external and whether it forms part of an escape route. Unknown answers are welcome; a supplier can help establish the missing details.
Check recorded size bounds
Enter aperture dimensions in whole millimetres. Tabulated pairs are checked without rotation or interpolation. A size fit still needs complete-system verification.
Minimum aperture size: not recorded here; supplier to confirm. Maximum aperture size: depends on the exact tested system below. Width × height pairs, area and certificate conditions apply together; no rotation or combined maxima. Stock sheets do not establish permitted aperture dimensions.
Recorded maximum sizes for Pyroguard 15mm
System c45 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 4.68m². Certificate dimension graph also applies. Complete-system verification required.
System c46 · Door · Steel · 30/30: width not recorded; height not recorded; maximum area 4.5m². Certificate dimension graph also applies. Complete-system verification required.
System c47 · Screen · Timber · 30/30: width not recorded; height not recorded. Certificate dimension graph also applies. Complete-system verification required.
System c48 · Door · Steel · 30/30: width not recorded; height not recorded; maximum area 4.42m². Certificate dimension graph also applies. Complete-system verification required.
System c49 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 5.96m². Certificate dimension graph also applies. Complete-system verification required.
System c50 · Door · Steel · 60/30: width not recorded; height not recorded; maximum area 2.94m². Certificate dimension graph also applies. Complete-system verification required.
System c51 · Door · Timber · 60/30: width not recorded; height not recorded; maximum area 0.65m². Certificate dimension graph also applies. Complete-system verification required.
System c52 · Screen · Timber · 60/30: width not recorded; height not recorded; maximum area 3m². Certificate dimension graph also applies. Complete-system verification required.
System c53 · Door · Steel · 60/60: width not recorded; height not recorded; maximum area 4.13m². Certificate dimension graph also applies. Complete-system verification required.
Individual system records
Compare the whole row, including its source pages. Stock-sheet dimensions are not certified aperture limits. Preserve width × height orientation; independent maxima cannot be combined, rotated or interpolated.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Screen · Steel · IGU · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 3.66 m2 2359
Recorded maximum area: 4.68m²
Stock-sheet bounds: 2075 × 3050mm; not an installation approval.

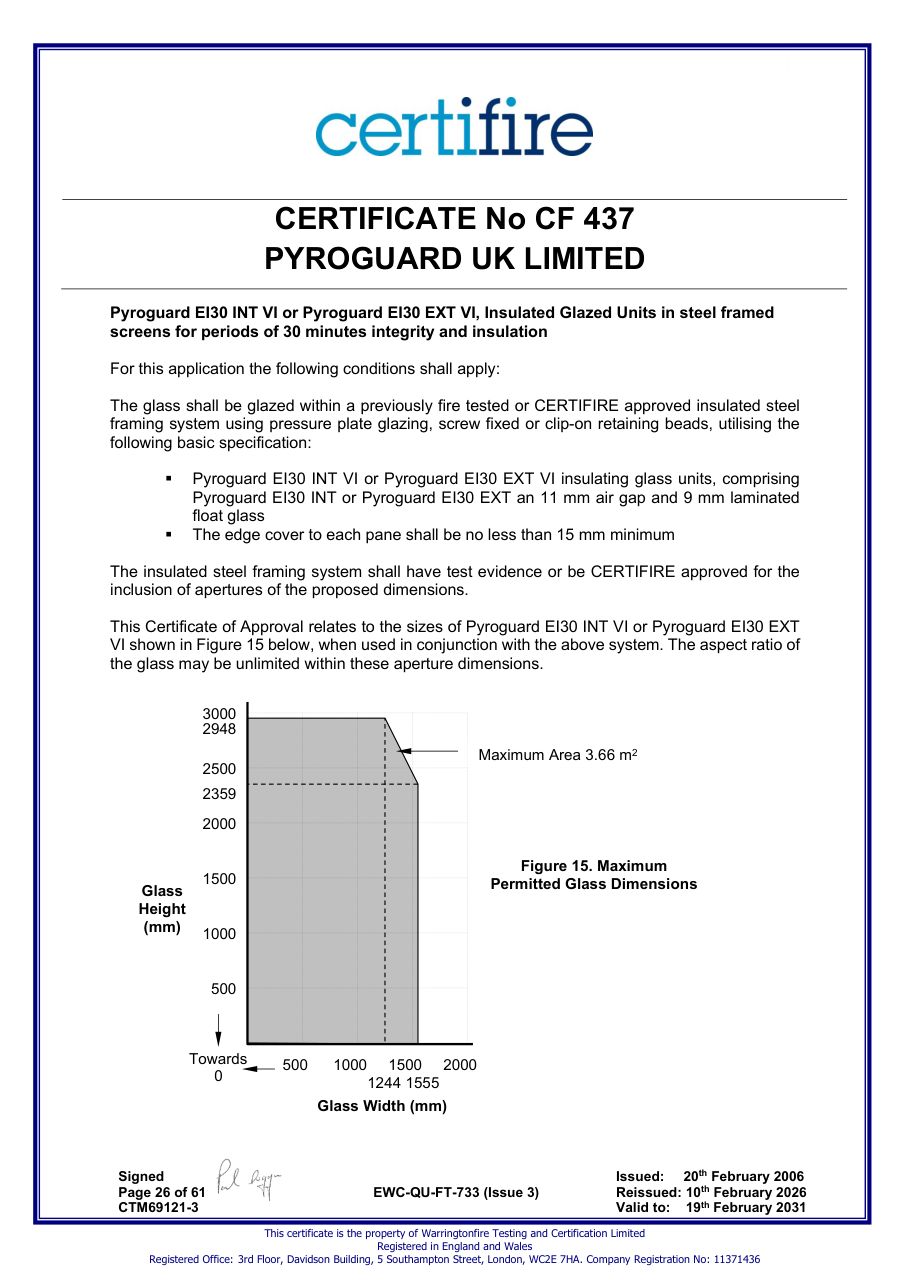

A certificate graph applies: Figure 15. Maximum; a simple area comparison cannot replace its limits.

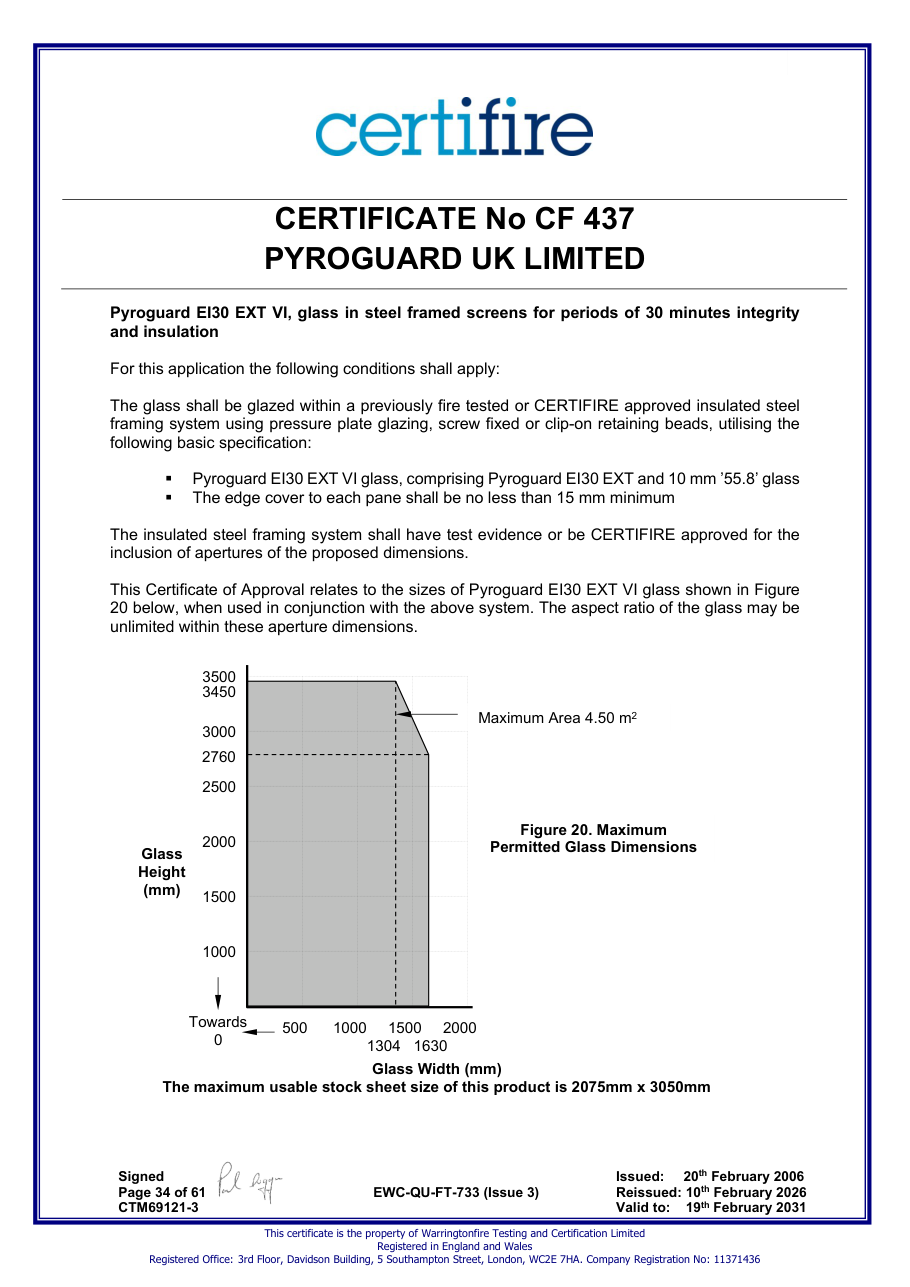

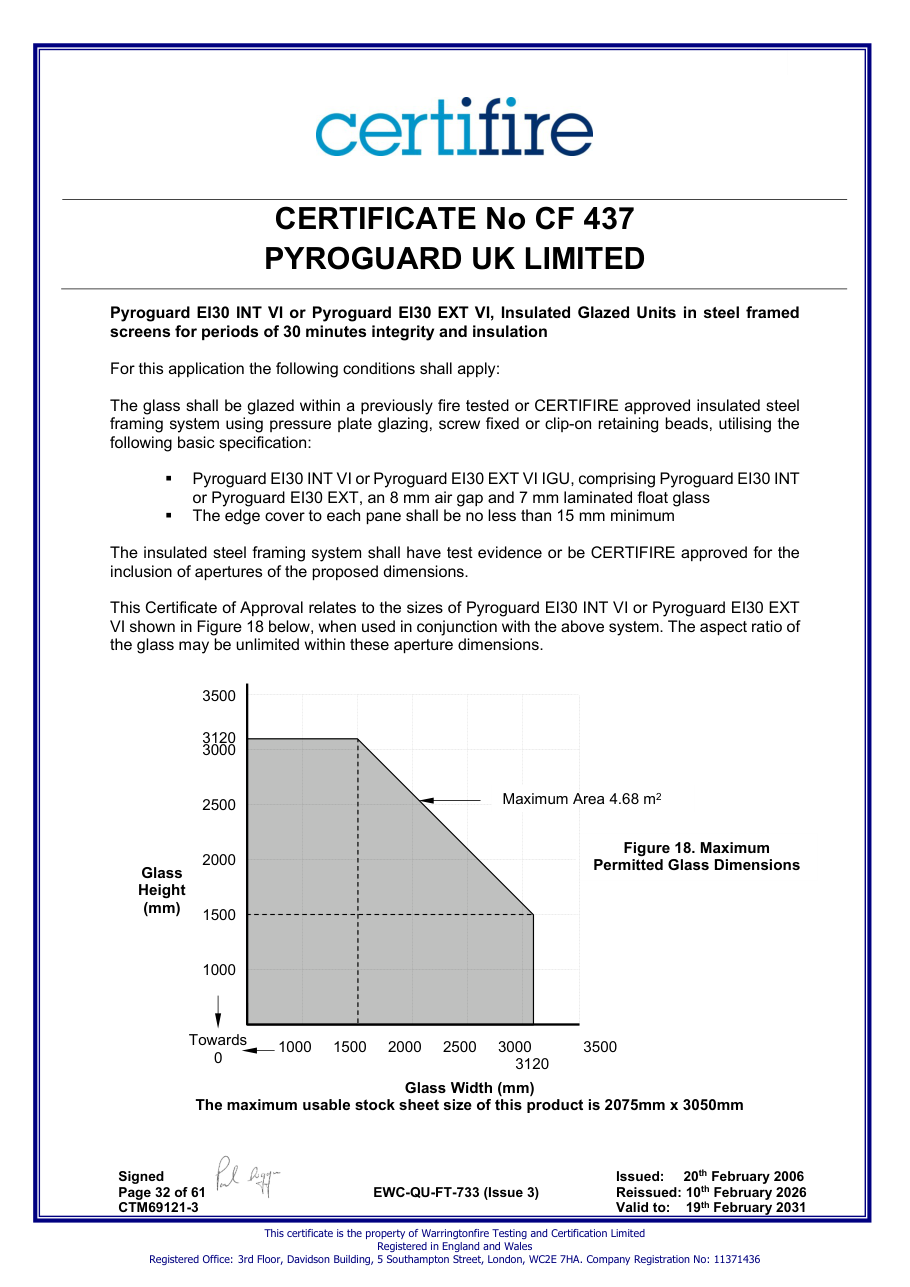

Figure references: Figure 15. Maximum, Figure 18. Maximum, Figure 20. Maximum
Construction and conditions
- Pyroguard EI30 INT VI or Pyroguard EI30 EXT VI insulating glass units, comprising Pyroguard EI30 INT or Pyroguard EI30 EXT an 11 mm air gap and 9 mm laminated float glass The edge cover to each pane shall be no less than 15 mm minimum
- Pyroguard EI30 INT VI or Pyroguard EI30 EXT VI IGU, comprising Pyroguard EI30 INT or Pyroguard EI30 EXT, an 8 mm air gap and 7 mm laminated float glass The edge cover to each pane shall be no less than 15 mm minimum
- Pyroguard EI30 EXT VI glass, comprising Pyroguard EI30 EXT and 10 mm ’55.8’ glass The edge cover to each pane shall be no less than 15 mm minimum
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Door · Steel · IGU · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 3.66 m2 2359
Recorded maximum area: 4.5m²
Stock-sheet bounds: 2075 × 3050mm; not an installation approval.

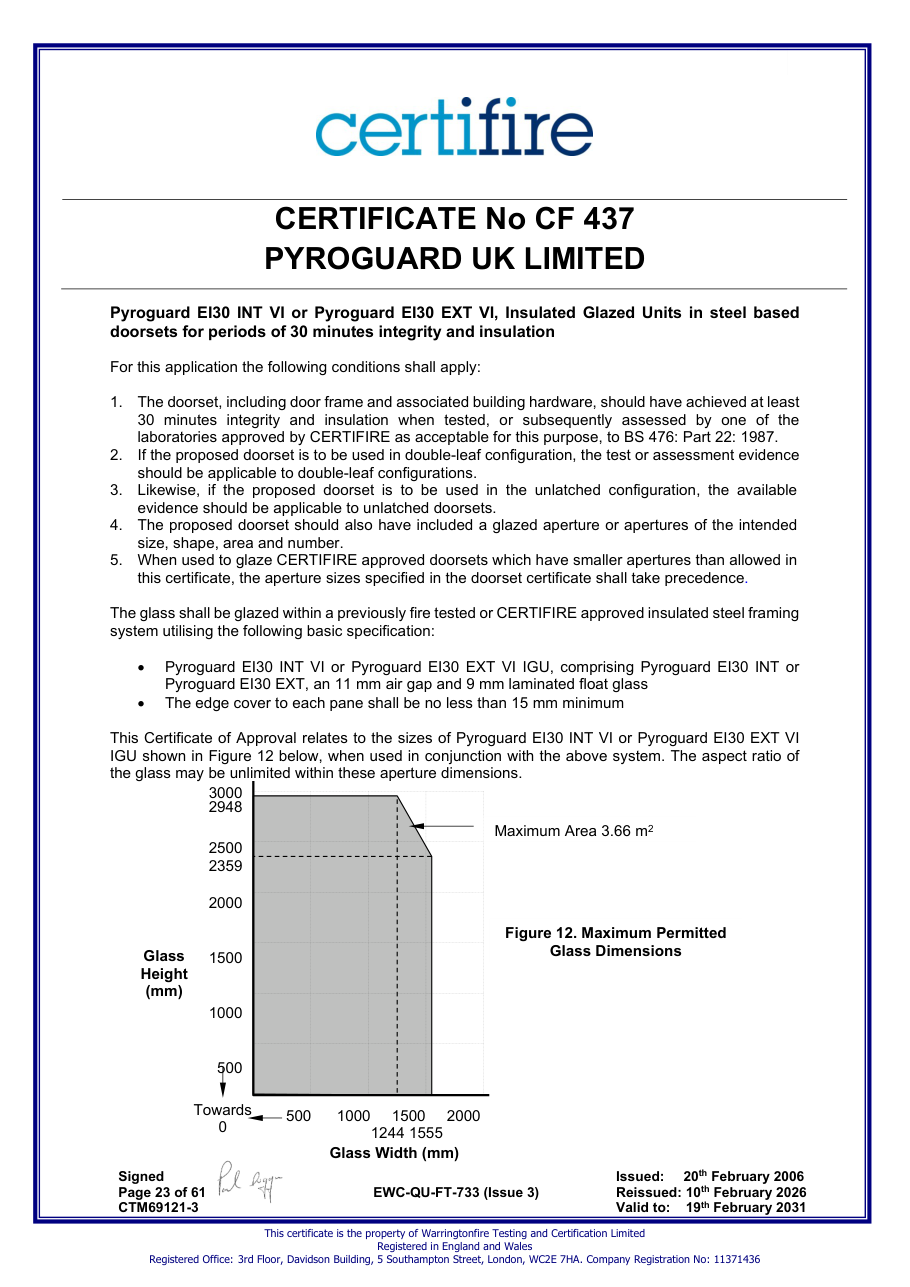

A certificate graph applies: Figure 12. Maximum Permitted; a simple area comparison cannot replace its limits.

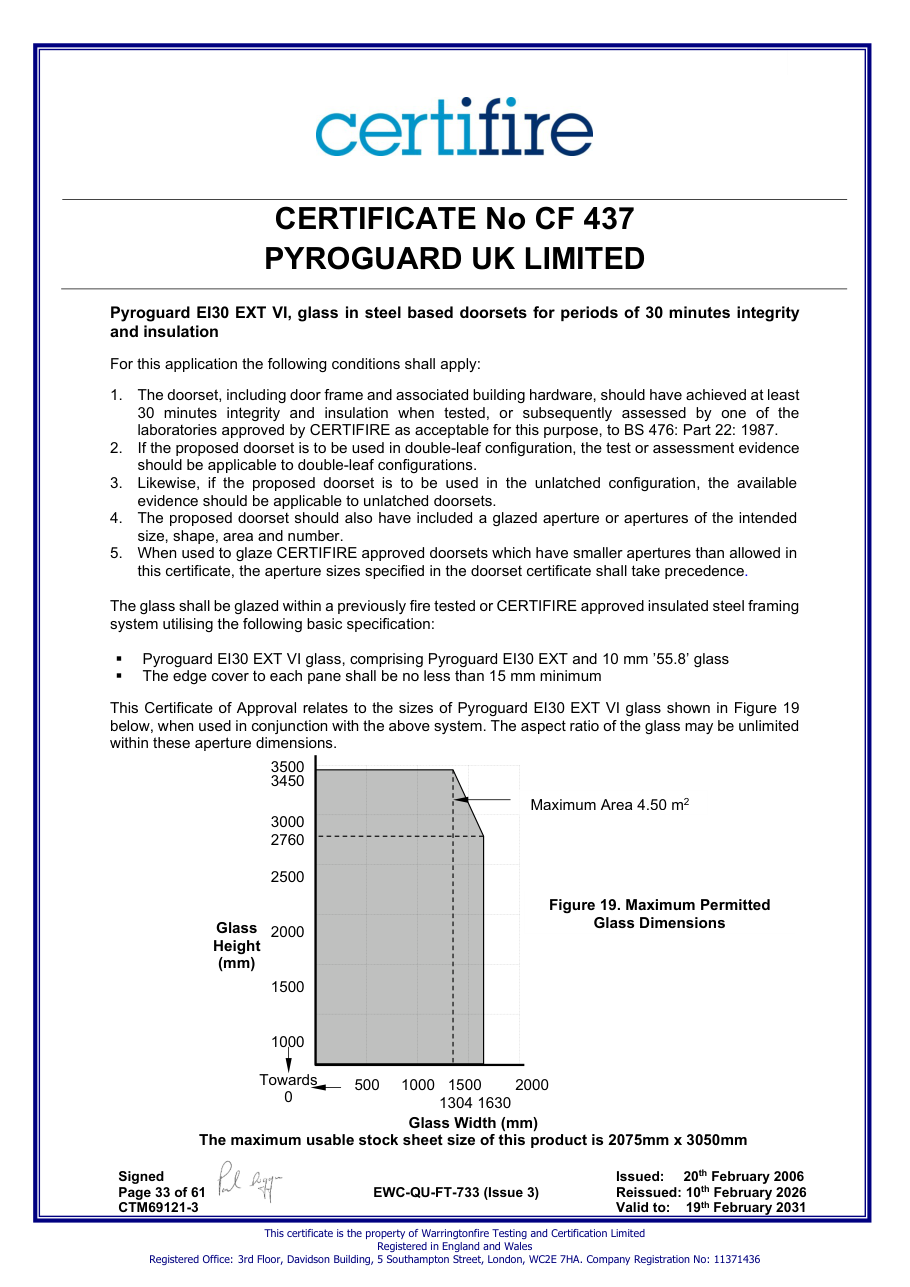

Figure references: Figure 12. Maximum Permitted, Figure 19. Maximum Permitted
Construction and conditions
- 30 minutes integrity and insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- should be applicable to double-leaf configurations.
- evidence should be applicable to unlatched doorsets.
- size, shape, area and number.
- this certificate, the aperture sizes specified in the doorset certificate shall take precedence. system utilising the following basic specification:
- Pyroguard EI30 INT VI or Pyroguard EI30 EXT VI IGU, comprising Pyroguard EI30 INT or Pyroguard EI30 EXT, an 11 mm air gap and 9 mm laminated float glass
- The edge cover to each pane shall be no less than 15 mm minimum
- this certificate, the aperture sizes specified in the doorset certificate shall take precedence. system utilising the following basic specification: Pyroguard EI30 EXT VI glass, comprising Pyroguard EI30 EXT and 10 mm ’55.8’ glass The edge cover to each pane shall be no less than 15 mm minimum
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Screen · Timber · IGU · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
No dimension text recorded; consult the certificate.
Stock sheet note: maximum usable stock sheet size of this product is 2075mm x 3050mm
Stock-sheet bounds: 2075 × 3050mm; not an installation approval.

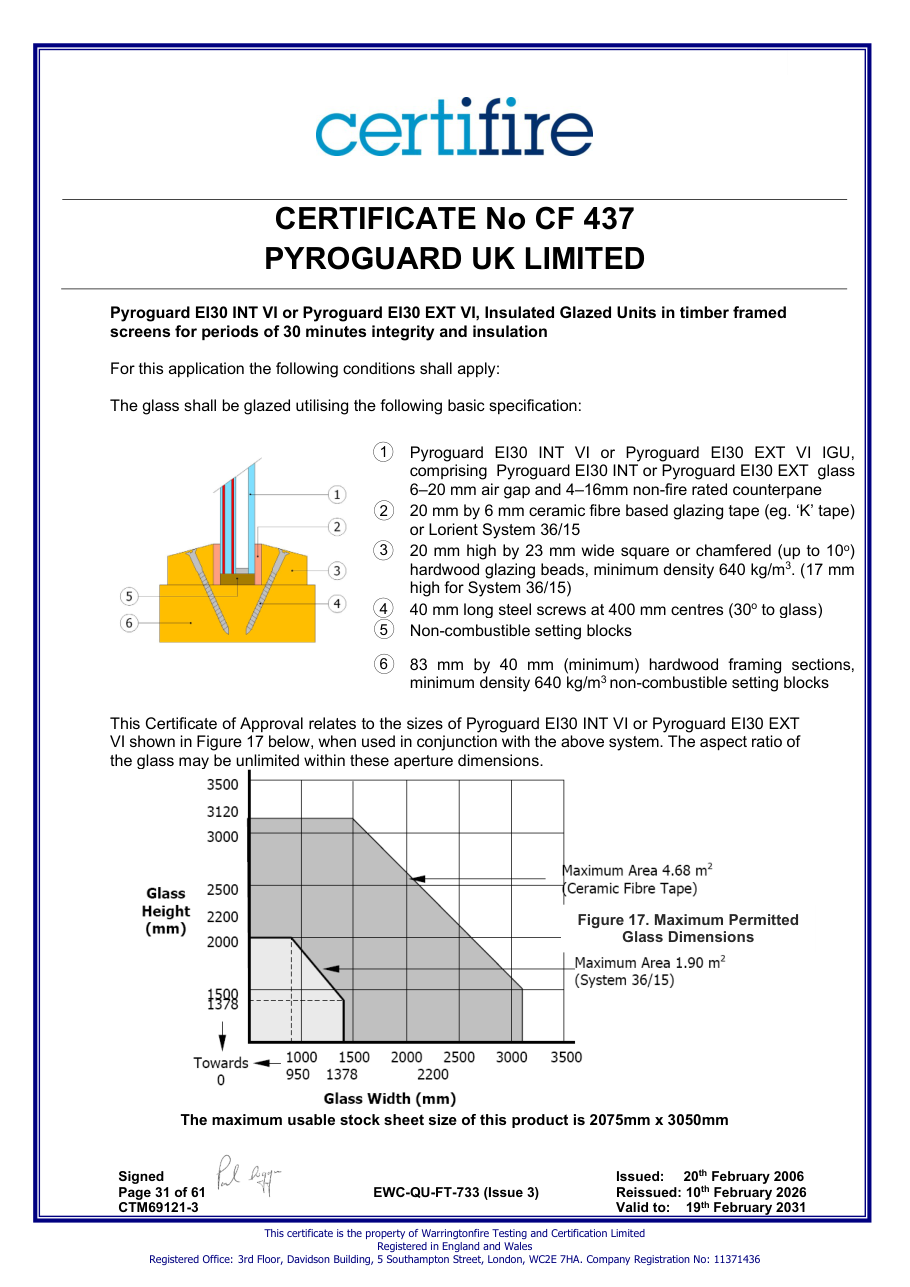

A certificate graph applies: Figure 17. Maximum Permitted; a simple area comparison cannot replace its limits.
Figure references: Figure 17. Maximum Permitted
Construction and conditions
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Door · Steel · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 4.42 m2 3205
Recorded maximum area: 4.42m²

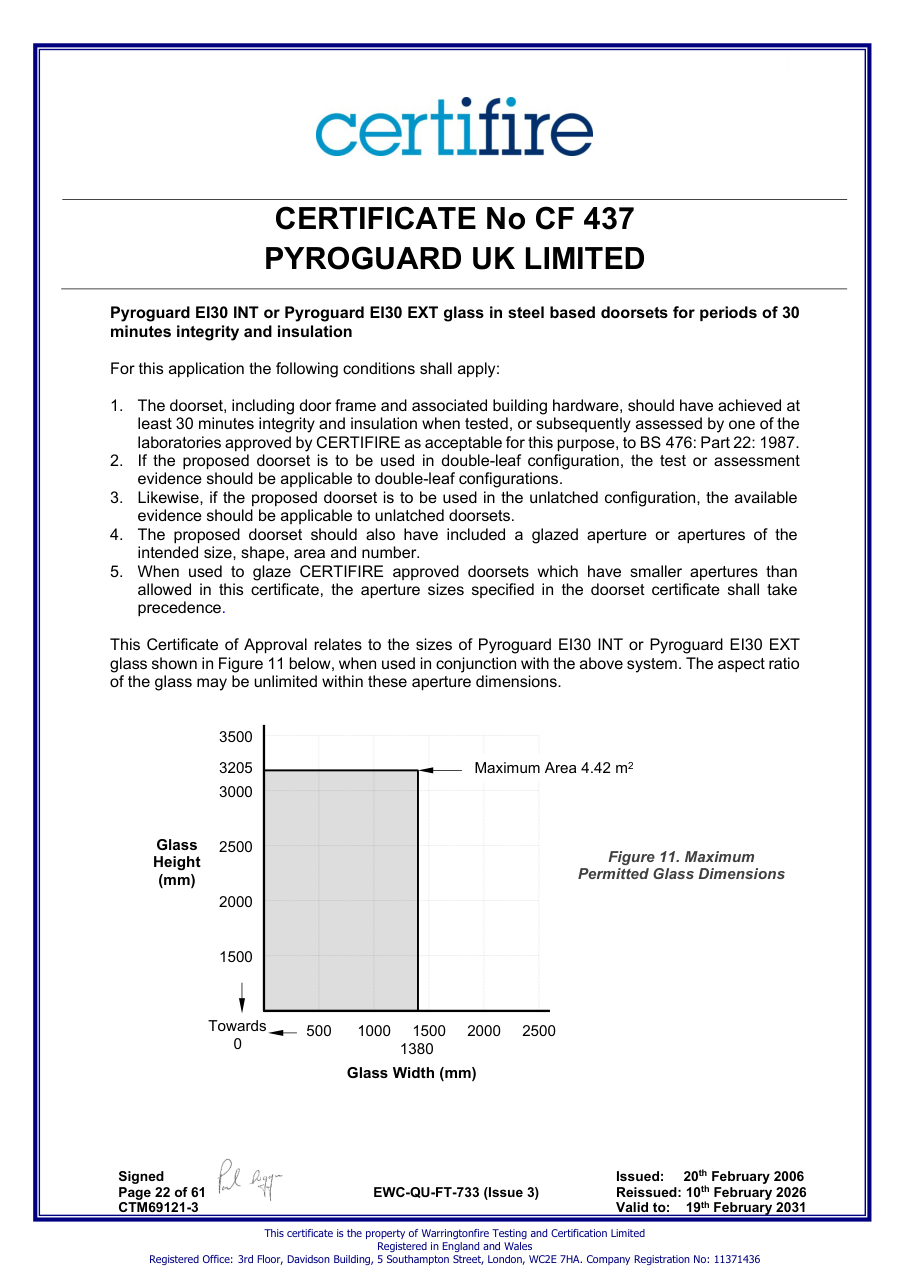

A certificate graph applies: Figure 11. Maximum; a simple area comparison cannot replace its limits.
Figure references: Figure 11. Maximum
Construction and conditions
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in steel based doorsets for periods of 30 minutes integrity and insulation
- least 30 minutes integrity and insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- evidence should be applicable to double-leaf configurations.
- evidence should be applicable to unlatched doorsets.
- intended size, shape, area and number.
- allowed in this certificate, the aperture sizes specified in the doorset certificate shall take precedence.
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Screen · Steel · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 5.68 m2 2383
Recorded maximum area: 5.96m²
Stock-sheet bounds: 2075 × 3050mm; not an installation approval.

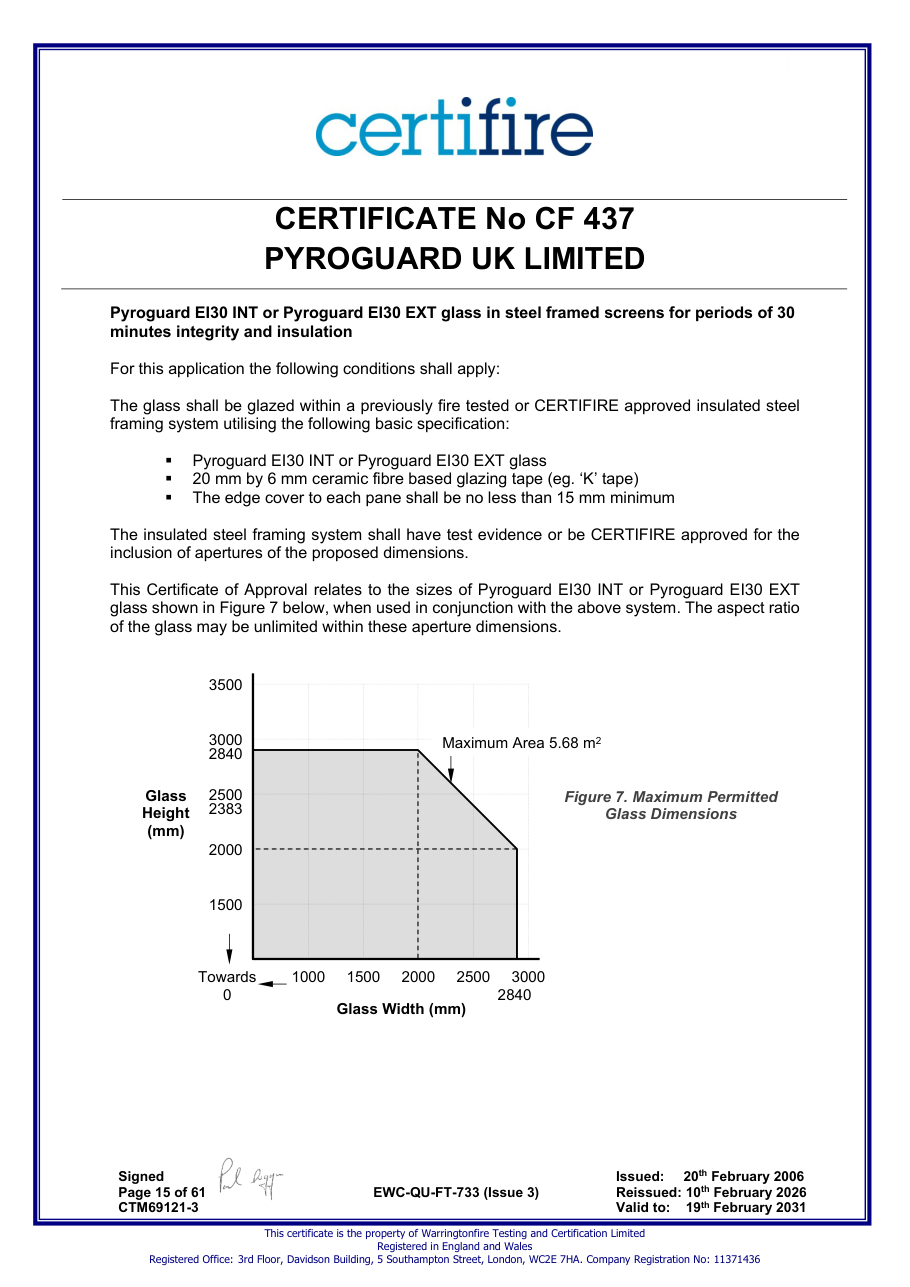

A certificate graph applies: Figure 7. Maximum Permitted; a simple area comparison cannot replace its limits.

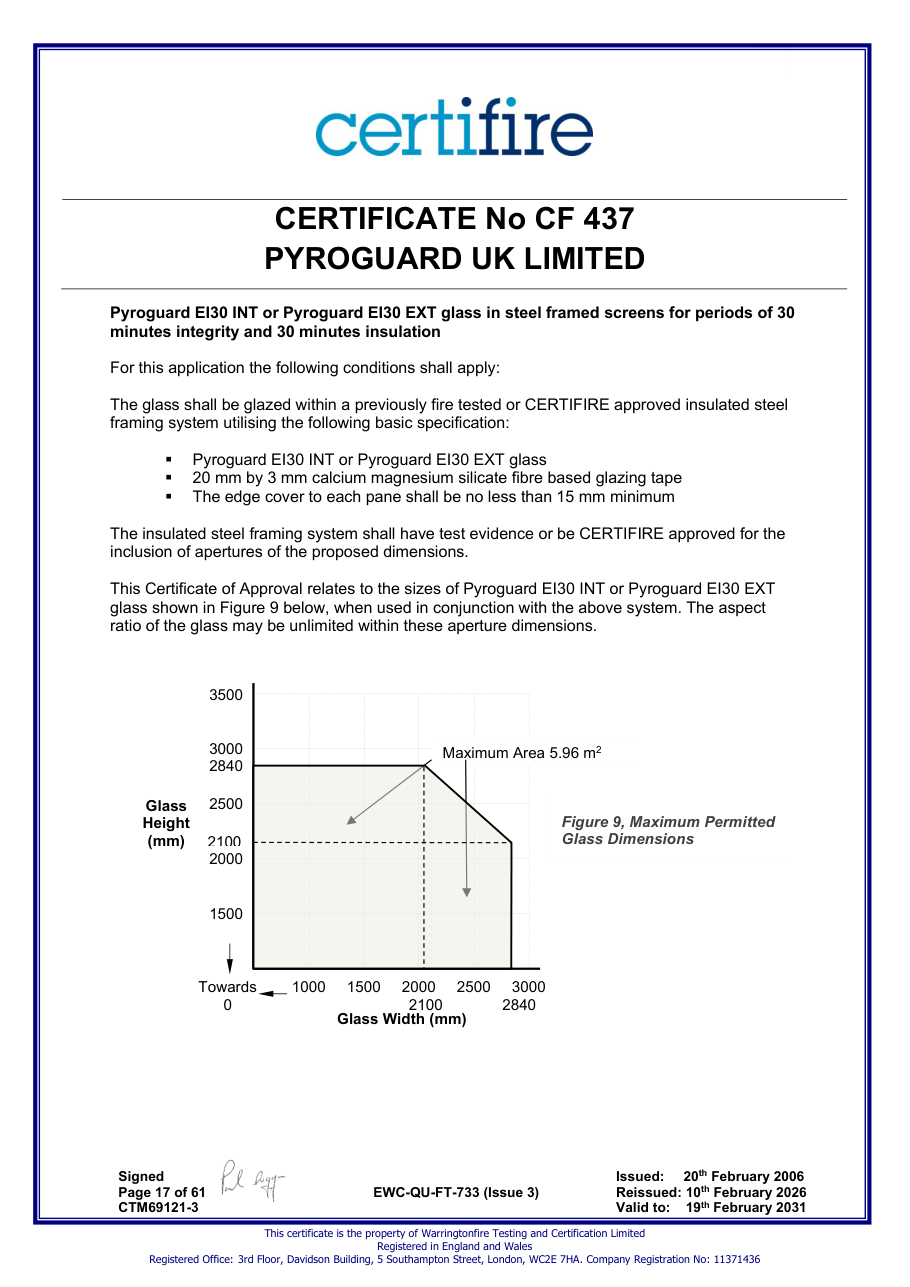

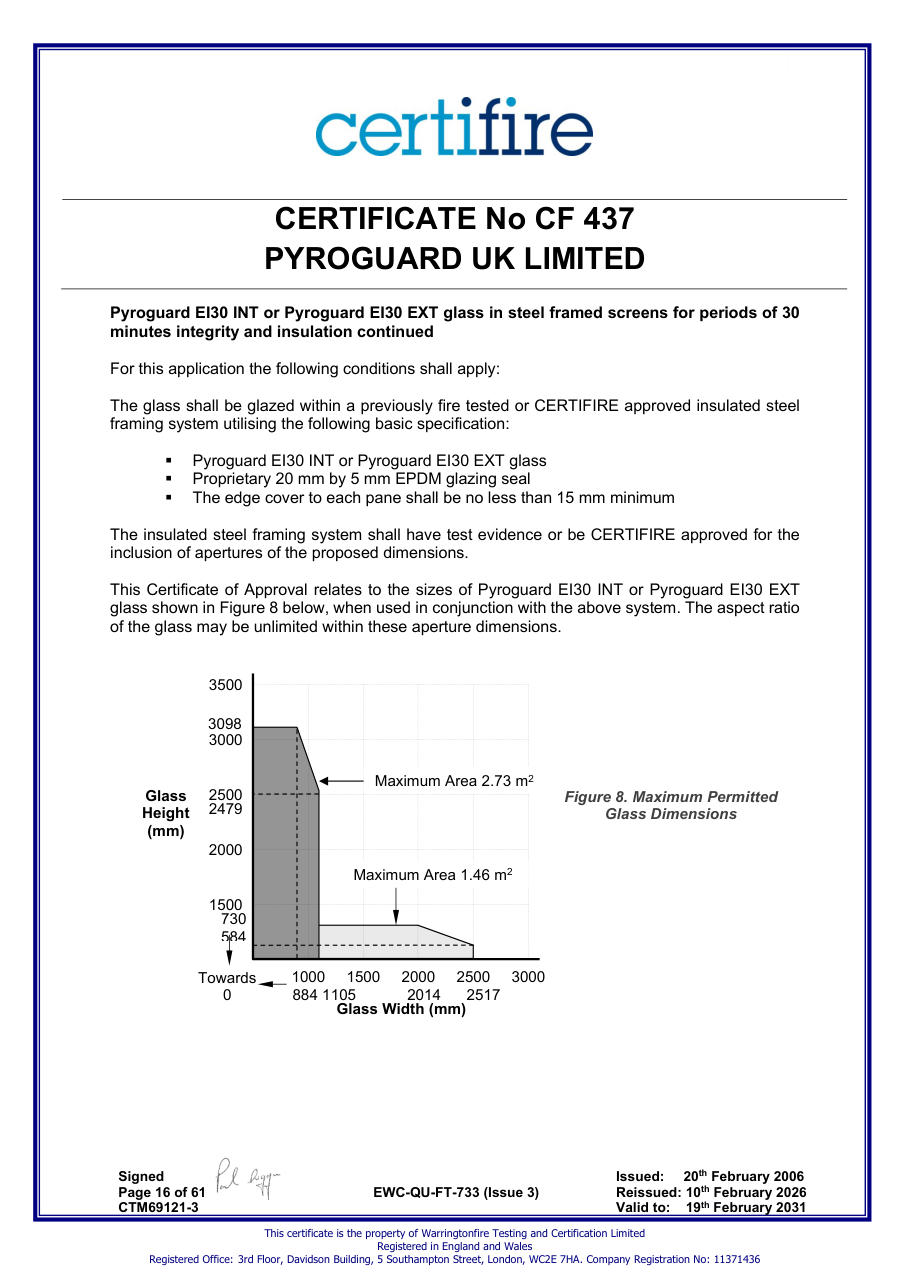

Figure references: Figure 7. Maximum Permitted, Figure 8. Maximum Permitted, Figure 9. , Maximum Permitted, Figure 42. Maximum Permitted Glass Dimensions
Construction and conditions
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in steel framed screens for periods of 30 minutes integrity and insulation framing system utilising the following basic specification: Pyroguard EI30 INT or Pyroguard EI30 EXT glass 20 mm by 6 mm ceramic fibre based glazing tape (eg. ‘K’ tape) The edge cover to each pane shall be no less than 15 mm minimum
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in steel framed screens for periods of 30 minutes integrity and insulation continued framing system utilising the following basic specification: Pyroguard EI30 INT or Pyroguard EI30 EXT glass Proprietary 20 mm by 5 mm EPDM glazing seal The edge cover to each pane shall be no less than 15 mm minimum
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in steel framed screens for periods of 30 minutes integrity and 30 minutes insulation framing system utilising the following basic specification: Pyroguard EI30 INT or Pyroguard EI30 EXT glass 20 mm by 3 mm calcium magnesium silicate fibre based glazing tape The edge cover to each pane shall be no less than 15 mm minimum

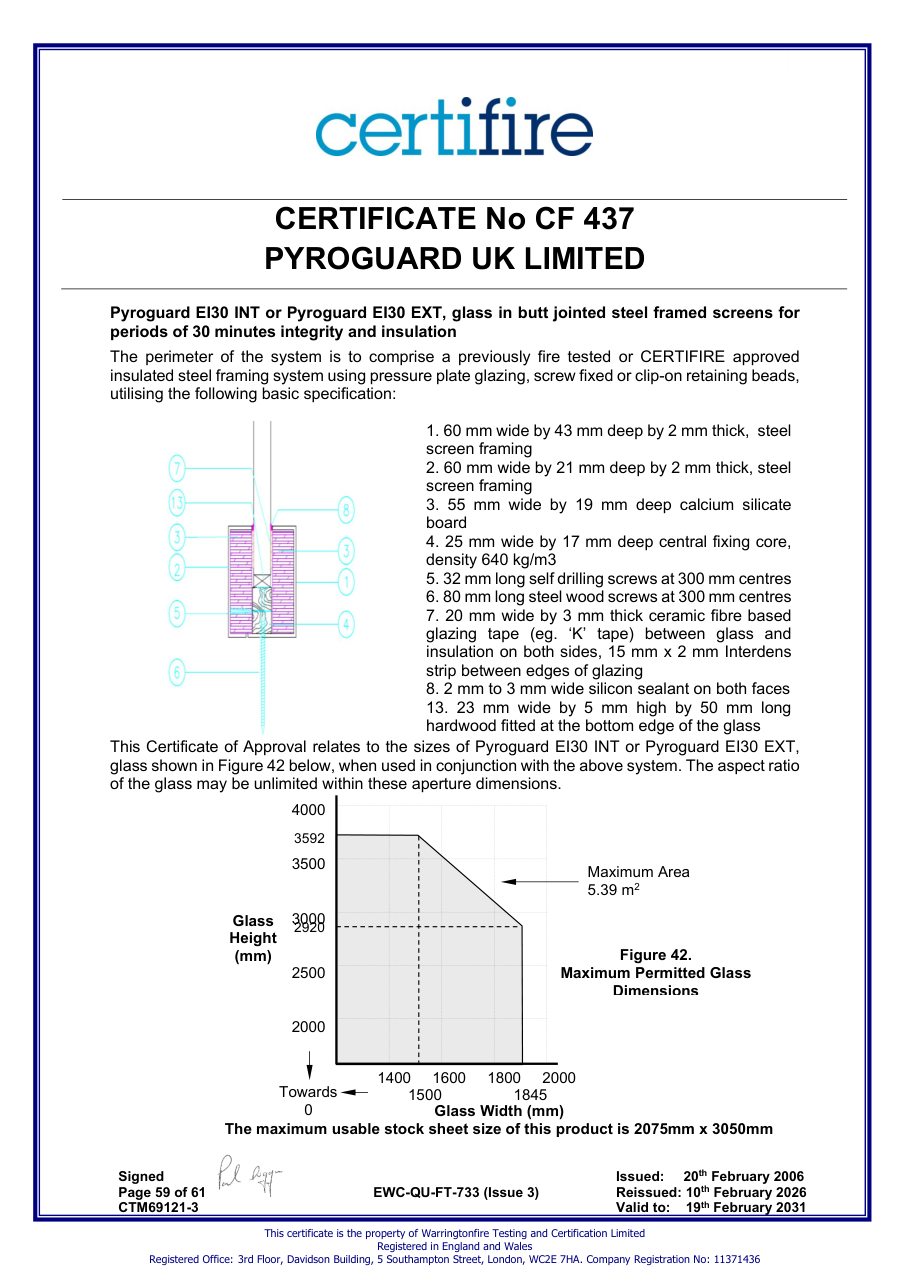

- Pyroguard EI30 INT or Pyroguard EI30 EXT, glass in butt jointed steel framed screens for periods of 30 minutes integrity and insulation The perimeter of the system is to comprise a previously fire tested or CERTIFIRE approved insulated steel framing system using pressure plate glazing, screw fixed or clip-on retaining beads,
- 60 mm wide by 43 mm deep by 2 mm thick, steel screen framing
- 60 mm wide by 21 mm deep by 2 mm thick, steel screen framing
- 55 mm wide by 19 mm deep calcium silicate board
- 25 mm wide by 17 mm deep central fixing core, density 640 kg/m3
- 32 mm long self drilling screws at 300 mm centres
- 80 mm long steel wood screws at 300 mm centres
- 20 mm wide by 3 mm thick ceramic fibre based glazing tape (eg. ‘K’ tape) between glass and insulation on both sides, 15 mm x 2 mm Interdens strip between edges of glazing
- 2 mm to 3 mm wide silicon sealant on both faces
- 23 mm wide by 5 mm high by 50 mm long hardwood fitted at the bottom edge of the glass
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Door · Steel · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 2.94 m2 2384 2861
Recorded maximum area: 2.94m²

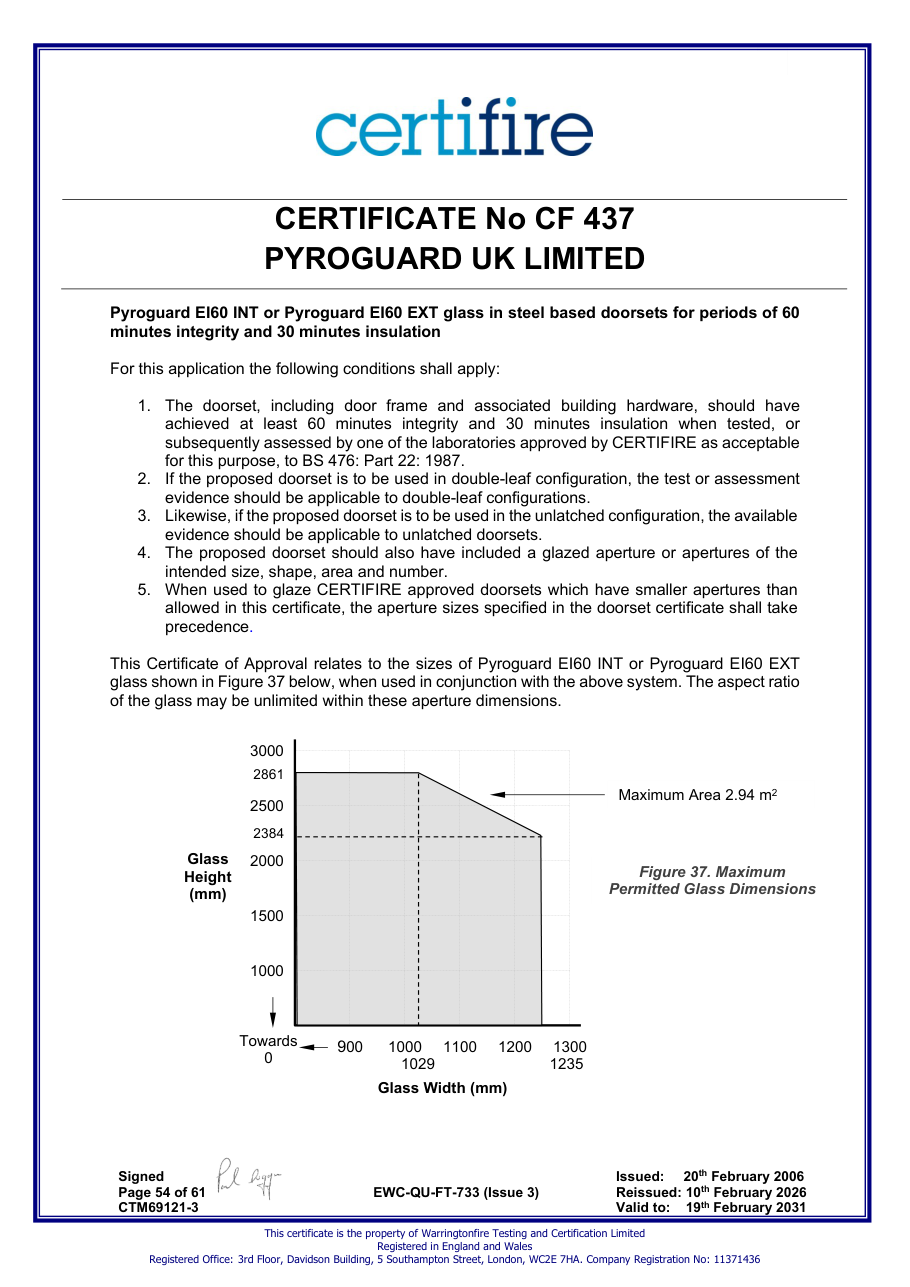

A certificate graph applies: Figure 37. Maximum; a simple area comparison cannot replace its limits.
Figure references: Figure 37. Maximum
Construction and conditions
- Pyroguard EI60 INT or Pyroguard EI60 EXT glass in steel based doorsets for periods of 60 minutes integrity and 30 minutes insulation
- achieved at least 60 minutes integrity and 30 minutes insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- evidence should be applicable to double-leaf configurations.
- evidence should be applicable to unlatched doorsets.
- intended size, shape, area and number.
- allowed in this certificate, the aperture sizes specified in the doorset certificate shall take precedence.
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Door · Timber · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 0.65 m2 1440
Recorded maximum area: 0.65m²

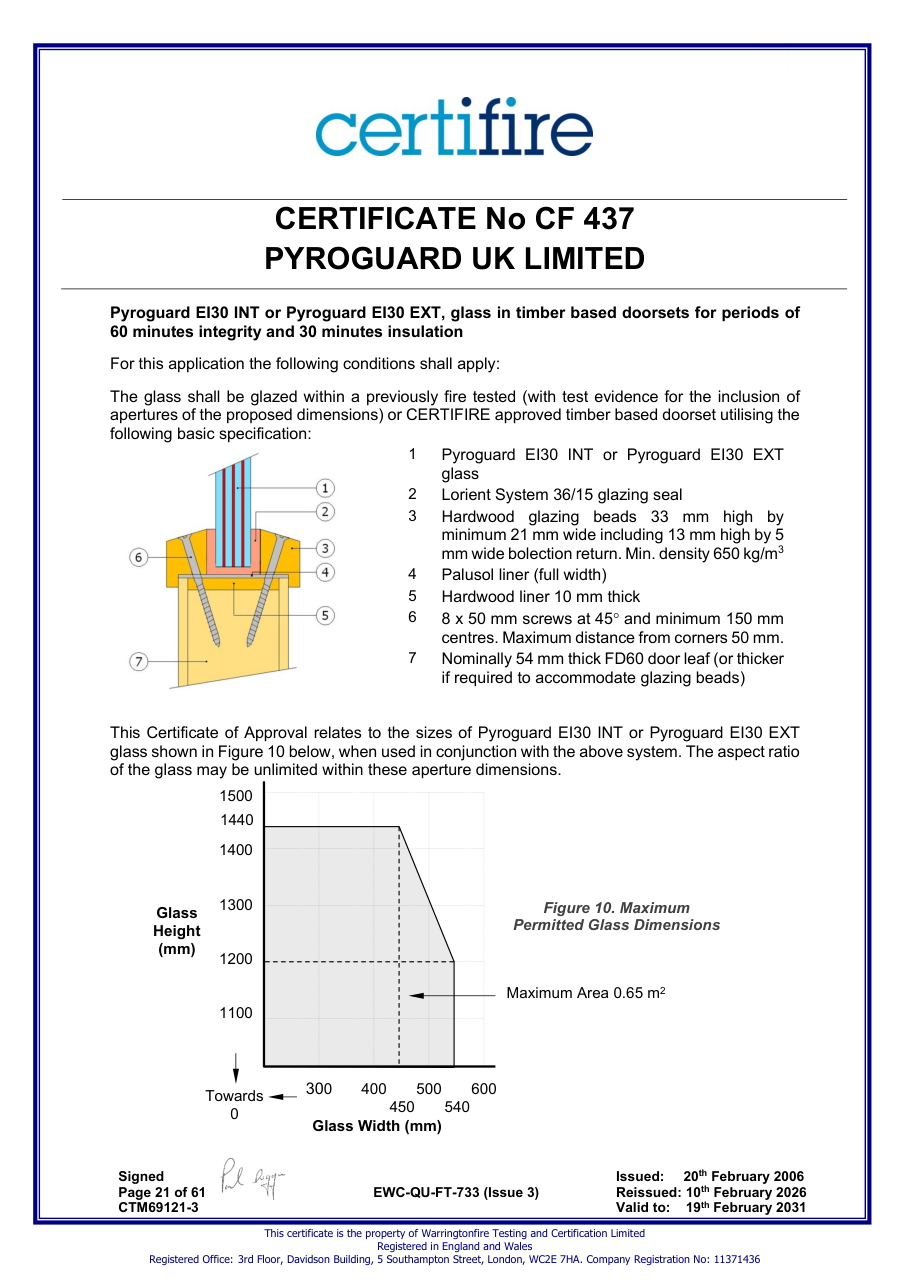

A certificate graph applies: Figure 10. Maximum; a simple area comparison cannot replace its limits.
Figure references: Figure 10. Maximum
Construction and conditions
- Pyroguard EI30 INT or Pyroguard EI30 EXT, glass in timber based doorsets for periods of 60 minutes integrity and 30 minutes insulation apertures of the proposed dimensions) or CERTIFIRE approved timber based doorset utilising the following basic specification:
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass
- Lorient System 36/15 glazing seal
- Hardwood glazing beads 33 mm high by minimum 21 mm wide including 13 mm high by 5 mm wide bolection return. Min. density 650 kg/m3
- Palusol liner (full width)
- Hardwood liner 10 mm thick
- 8 x 50 mm screws at 45° and minimum 150 mm centres. Maximum distance from corners 50 mm.
- Nominally 54 mm thick FD60 door leaf (or thicker if required to accommodate glazing beads)
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Screen · Timber · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 3.00 m2 1200 Maximum Area 2.40 m2
Recorded maximum area: 3m²

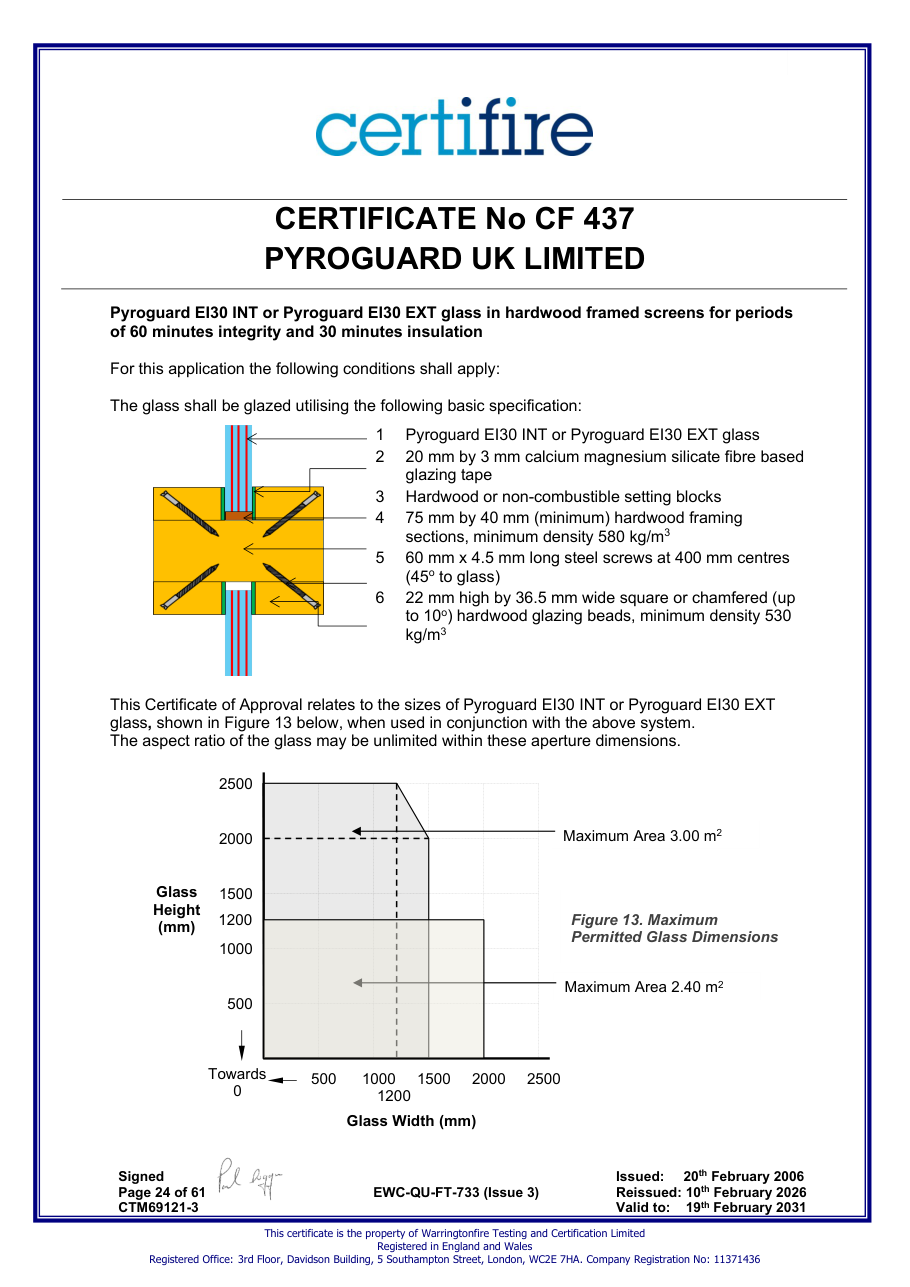

A certificate graph applies: Figure 13. Maximum; a simple area comparison cannot replace its limits.

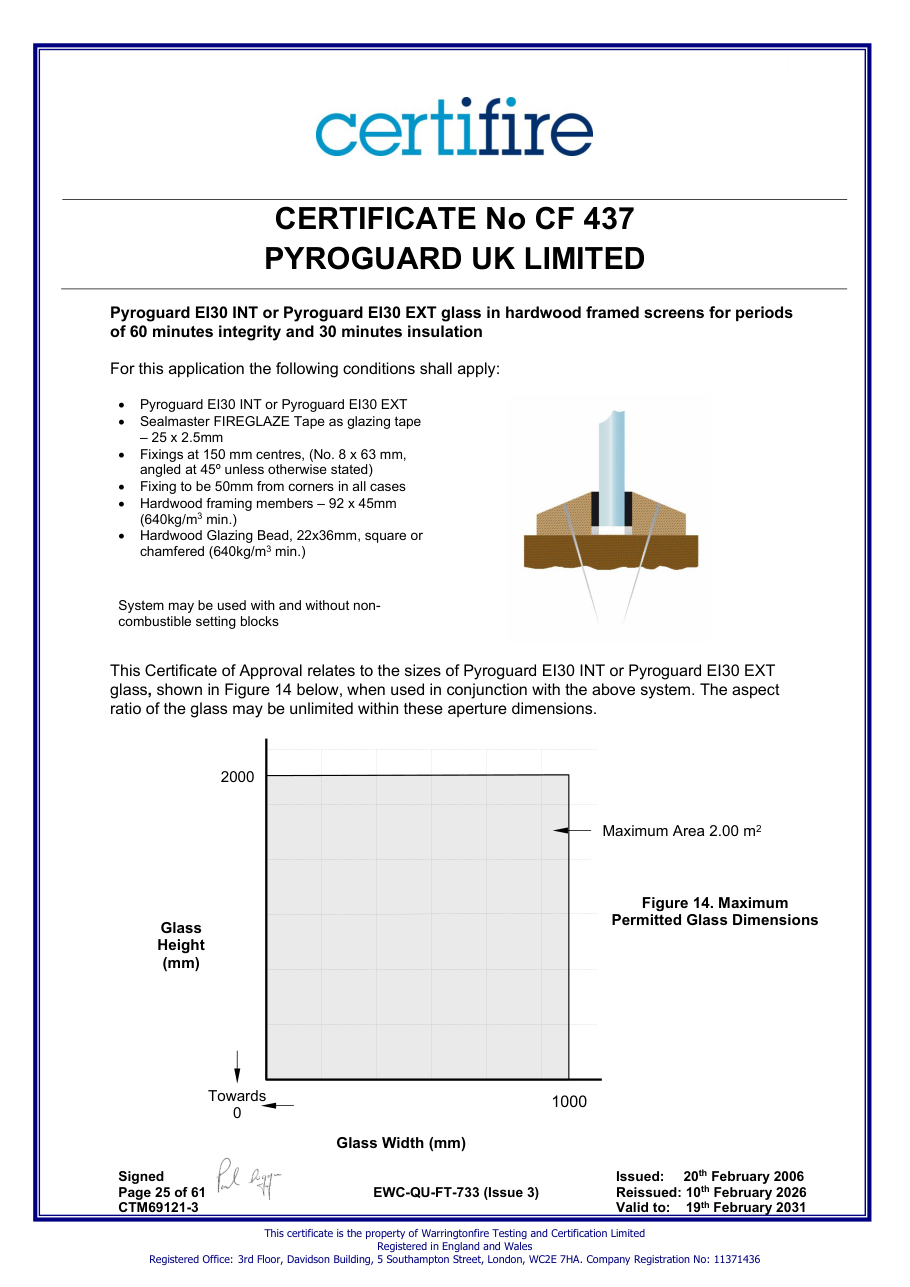

Figure references: Figure 13. Maximum, Figure 14. Maximum, Figure 16. Maximum
Construction and conditions
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in hardwood framed screens for periods of 60 minutes integrity and 30 minutes insulation
- Pyroguard EI30 INT or Pyroguard EI30 EXT
- Sealmaster FIREGLAZE Tape as glazing tape – 25 x 2.5mm
- Fixings at 150 mm centres, (No. 8 x 63 mm, angled at 45º unless otherwise stated)
- Fixing to be 50mm from corners in all cases
- Hardwood framing members – 92 x 45mm (640kg/m3 min.)
- Hardwood Glazing Bead, 22x36mm, square or chamfered (640kg/m3 min.) System may be used with and without non- combustible setting blocks
- Pyroguard EI30 INT or Pyroguard EI30 EXT glass in timber framed screens for periods of 60 minutes integrity and 30 minutes insulation
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 60 min insulation
Test regime / classification mapping needs verification
Within stated validity to 19 Feb 2031; issuer status still requires checking
Application and assembly
Door · Steel · IGU · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
Maximum Area 4.13 m2 3178 2584
Recorded maximum area: 4.13m²
Stock sheet note: maximum usable stock sheet size of this product is 2075mm x 3050mm
Stock-sheet bounds: 2075 × 3050mm; not an installation approval.

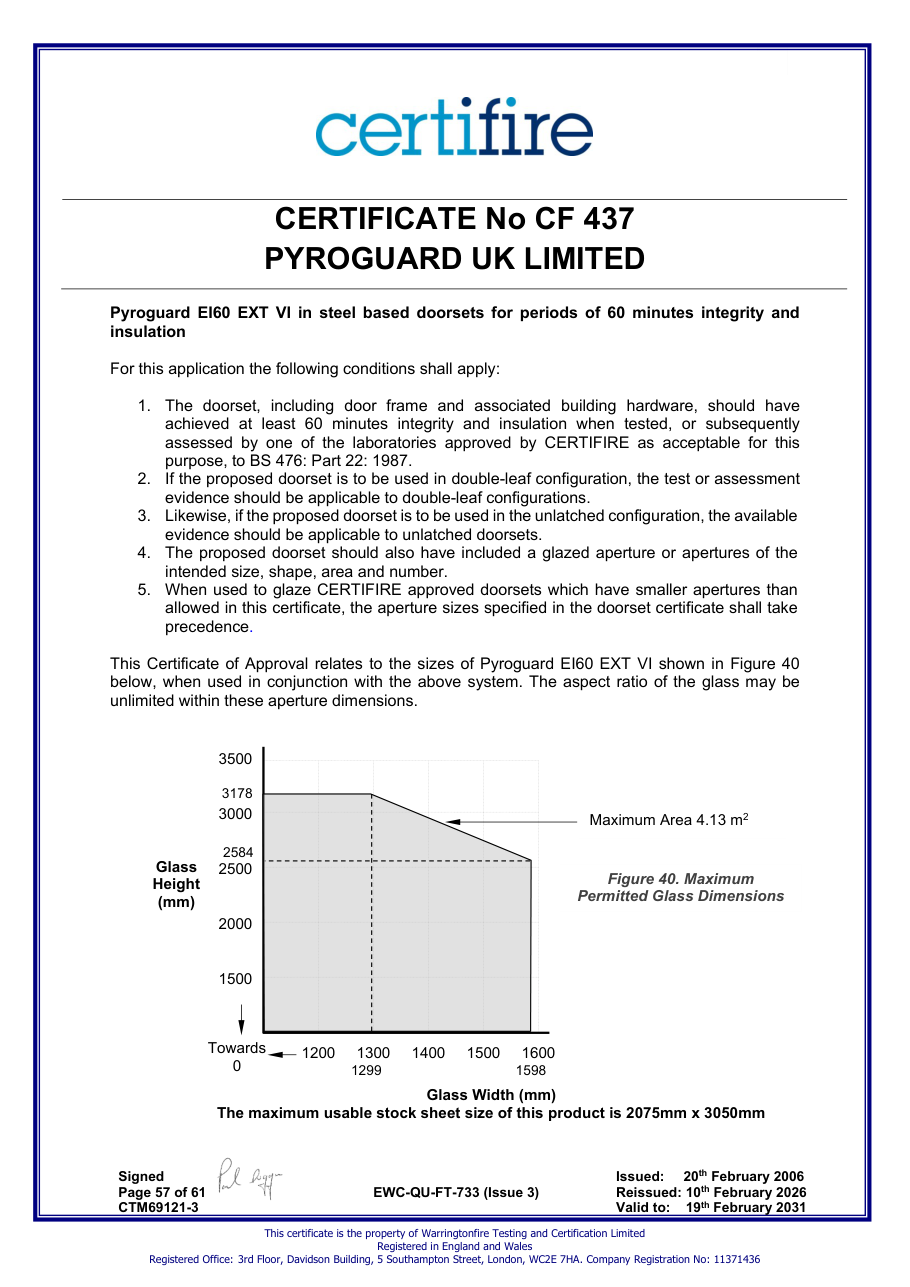

A certificate graph applies: Figure 40. Maximum; a simple area comparison cannot replace its limits.

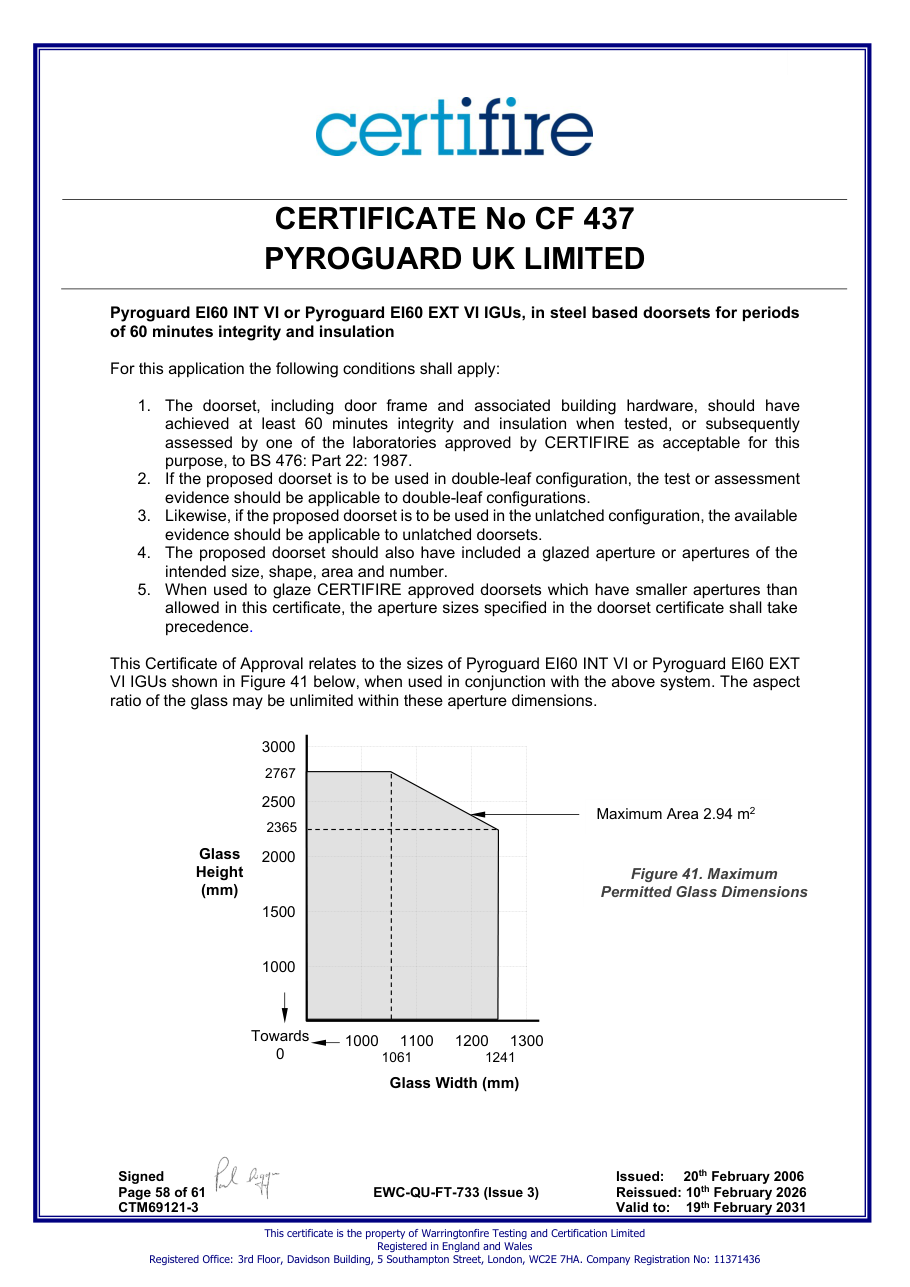

Figure references: Figure 40. Maximum, Figure 41. Maximum
Construction and conditions
- achieved at least 60 minutes integrity and insulation when tested, or subsequently assessed by one of the laboratories approved by CERTIFIRE as acceptable for this purpose, to BS 476: Part 22: 1987.
- evidence should be applicable to double-leaf configurations.
- evidence should be applicable to unlatched doorsets.
- intended size, shape, area and number.
- allowed in this certificate, the aperture sizes specified in the doorset certificate shall take precedence.
- Pyroguard EI60 INT VI or Pyroguard EI60 EXT VI IGUs, in steel based doorsets for periods of 60 minutes integrity and insulation
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
Other Pyroguard records
Description and application images
Pyroguard 15mm fire-rated glass cut to size: request made-to-measure panels, with sizes, framing and the complete glazing system confirmed by your supplier.
Suitable uses and specification limits
Discuss fire doors, screens or other applications against the matching system record. Supply the required performance, frame, internal/external location and specification if known.
Approval depends on the complete tested glazing assembly. Preserve each recorded width × height pair and orientation. Do not combine independent maxima or treat stock-sheet sizes as certified aperture limits. Current evidence must be confirmed.
Read the individual system records →Available shapes and glass options
Request the exact model and matching system record. Thickness, frame, location and performance belong to that record; alternatives require specialist review.
Current product: Pyroguard 15mm. Keep the glass type, treatment and thickness with every panel.
Choose options in the planner →Edge finishes and fabrication choices
Shapes, holes, cut-outs and edge treatments need the certificate holder or system specialist’s confirmation. General sheet-glass processing choices cannot be assumed for fire-rated glass.
Include the face, orientation and drawing reference for each panel. The quotation must confirm the processing, tolerances and charges before manufacture.
Measuring instructions
- Record the opening or aperture width and height and clearly identify which measurement you have taken. Let the system specialist establish the finished glass size and edge cover.
- Identify the door or screen system, framing, beads, seals, application, required performance and fire direction where known. Keep the system record reference with the drawing.
- Provide an overall photograph, close-ups of any labels and a dimensioned schedule. Obtain a supplier-approved final specification before manufacture or fitting.
Not sure of the finished size? Use a simple enquiry and request measuring or fitting advice. A photograph alone is not a manufacturing drawing.
Typical raw stock-sheet formats
Primary manufacturers make raw sheet glass. Fabricators and processors cut, treat and assemble it for individual orders. Supply may pass through distributors; direct-sales arrangements vary.
Official manufacturer information: Pilkington, Fuyao Glass, AGC Group, Guardian Glass, Saint-Gobain. These are non-exhaustive industry examples, not preferred suppliers. Product ranges and supply arrangements vary.
These are typical formats for raw glass before cutting and processing. Availability depends on your supplier’s raw-glass source and the exact product, finish and thickness.
| Format | Raw sheet size |
|---|---|
| Machine size (standard) | 3210 × 2250 mm or 3210 × 2550 mm |
| Split size | 3210 × 2000 mm Custom split layouts may be derived from a 3210 mm ribbon; confirm the layout with your supplier. |
| Jumbo size (PLF) | 3210 × 6000 mm |
Raw sheet size is not a guaranteed orderable finished-panel size. Cutting allowances, machinery capacity and orientation, processing and handling can restrict the finished dimensions. Keep the product’s own width × height pairs and safety limits.
These formats do not establish availability for mirrors, laminates, insulated or heritage units, patterned glass, fire-rated glass or other specialist products. Their product-specific sizes and restrictions still apply.
Compare the quoted price alongside the confirmed specification, relevant quality documentation, traceable provenance and consistency. Agree shipping and lead times, handling and replacement arrangements, regardless of where the glass is made.
Enter the finished glass sizes you need in the planner. Your supplier confirms the raw material and what can be cut, processed, handled and supplied for that specification.
Drawing and photograph upload
Include an overall view, close-ups of supports or frames, and a drawing with panel references, dimensions and orientation.
PDF, JPG, PNG or WebP · up to 6 files per product · 5MB per file. Files stay in this browser on this device and are available with this product in your basket. Supply them separately to your supplier when requested. Keep your originals; clearing browser data removes these copies.
Updating local files…
Get a price or supplier quote
Configure your panels or describe what you need. Your supplier confirms glass, processing, VAT, delivery and any measuring or fitting charges in the quotation.
Build your basket to request a supplier quotation. Adding a request is not an order.
Delivery, collection and fitting information
Delivery
Manufacturing, evidence review and delivery are confirmed for the exact fire-glass system.
Give your actual project postcode and access details. Agree packaging, unloading, handling equipment and the delivery date with your supplier.
Collection
Request factory collection where available. Wait for readiness confirmation and agree a time, loading arrangements and suitable transport before travelling.
Measuring and fitting
Ask for supply only, glass with fittings, or supply and installation. Measuring, removal of existing glass, fixings and fitting need an agreed scope and price.
FAQs and care advice
Can I choose fire glass by thickness or minutes alone?
The model, frame, seals, fixings, dimensions and installation conditions must match current evidence for the complete system. A single thickness or rating does not approve an installation.
Can I request a quote before I know all the sizes?
Yes. Start with the intended use and what you already know. Ask for help measuring or specifying, then approve the final dimensions and drawing with the supplier.
Are shaping, processing and fitting included in the price?
The supplier quotation confirms each included item and any separate charge. Planner choices are requests for review; they do not establish a final price.
How should I care for this glass?
Use the system supplier’s cleaning and inspection instructions. Report glass, frame or seal damage to a qualified specialist and keep the system identification and maintenance records.
