AGC Flatglass Pyrobel 16 & 16EG — fire-rated glass cut to size
Request AGC Flatglass Pyrobel 16 & 16EG fire-rated glass cut to size for your project. Your supplier confirms availability, permitted dimensions and the complete tested glazing system before ordering.
AGC Flatglass Pyrobel 16 & 16EG has 4 recorded system options in the imported selector. This page brings together its performance records, installation conditions and certificate sources so you can discuss the exact system with a specialist.
Discuss AGC Flatglass Pyrobel 16 & 16EG
Keep this model with your basket request. The supplier can check the evidence, ask for drawings or suggest an alternative. This does not approve a glass type or instruct manufacture.
Plan your fire-glass panels
Keep this model selected while adding different sizes and quantities. Each panel needs supplier verification.
Dimensions can be left blank if you need advice. Contact details are collected once in the basket.
Minimum aperture size: not recorded here; supplier to confirm. Maximum aperture size: depends on the exact tested system below. Width × height pairs, area and certificate conditions apply together; no rotation or combined maxima. Stock sheets do not establish permitted aperture dimensions.
Recorded maximum sizes for AGC Flatglass Pyrobel 16 & 16EG
System c5 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 4.64m². Complete-system verification required.
System c6 · Door · Steel · 60/30: width not recorded; height not recorded. Complete-system verification required.
System c7 · Door · Timber · 30/30: width not recorded; height not recorded; maximum area 2.99m². Complete-system verification required.
System c8 · Screen · Timber · 60/30: width not recorded; height not recorded; maximum area 3.78m². Complete-system verification required.
Online enquiry entry range: 1–20,000mm per dimension, not a manufacturing or certified size range. Unknown sizes may be left blank in Simple mode.
Panel 1
Supplier quotation and complete-system review required.
What the recorded product covers
The selector lists this AGC Flatglass model for Screen, Door applications, using Steel, Timber framing within the individual recorded systems. These are separate options: the frame, application and performance from different rows cannot be combined to create a new approval.
Recorded glazing arrangements: Single. Location descriptions: Internal or External. Read the matching record below for its exact construction and restrictions.
Performance is specific to each system
The source lists integrity / insulation minute pairs: 30/30, 60/30. These figures are retained in their recorded form. They do not automatically establish an EN 13501 E, EW or EI classification, or approval for your door, screen or window.
Request made-to-measure fire-rated glass
For your cut-to-size fire glass enquiry, have the finished aperture width and height, intended use, frame material and any architect’s specification ready if you know them. Tell the specialist whether the glass is internal or external and whether it forms part of an escape route. Unknown answers are welcome; a supplier can help establish the missing details.
Check recorded size bounds
Enter aperture dimensions in whole millimetres. Tabulated pairs are checked without rotation or interpolation. A size fit still needs complete-system verification.
Minimum aperture size: not recorded here; supplier to confirm. Maximum aperture size: depends on the exact tested system below. Width × height pairs, area and certificate conditions apply together; no rotation or combined maxima. Stock sheets do not establish permitted aperture dimensions.
Recorded maximum sizes for AGC Flatglass Pyrobel 16 & 16EG
System c5 · Screen · Steel · 30/30: width not recorded; height not recorded; maximum area 4.64m². Complete-system verification required.
System c6 · Door · Steel · 60/30: width not recorded; height not recorded. Complete-system verification required.
System c7 · Door · Timber · 30/30: width not recorded; height not recorded; maximum area 2.99m². Complete-system verification required.
System c8 · Screen · Timber · 60/30: width not recorded; height not recorded; maximum area 3.78m². Complete-system verification required.
Individual system records
Compare the whole row, including its source pages. Stock-sheet dimensions are not certified aperture limits. Preserve width × height orientation; independent maxima cannot be combined, rotated or interpolated.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 20 Jun 2029; issuer status still requires checking
Application and assembly
Screen · Steel · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions

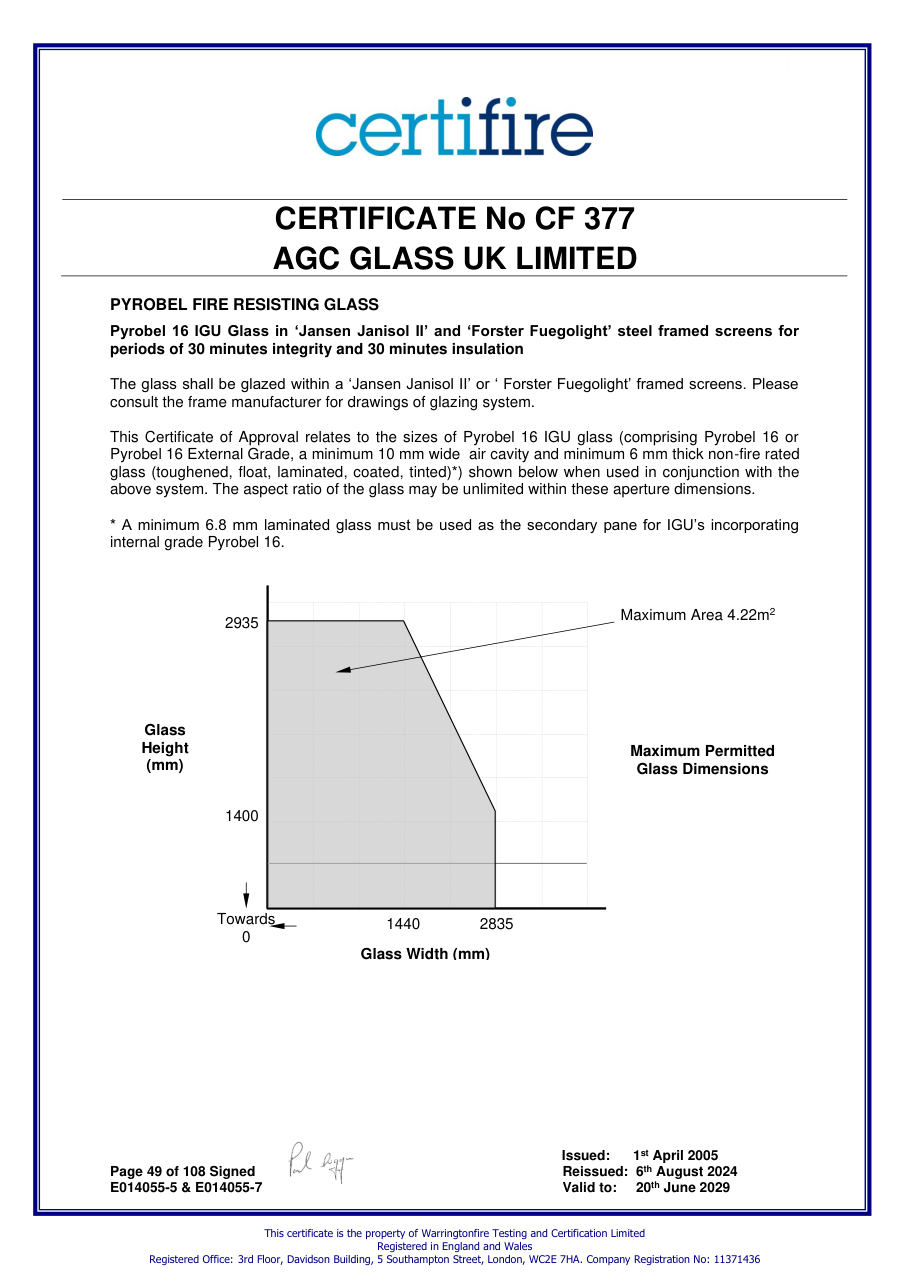

Maximum Area 4.22m2 1440 2835 Glass Width (mm) Towards 0 2935 1400 Maximum Permitted Glass Dimensions
Recorded maximum area: 4.64m²
Construction and conditions
- Pyrobel 16 IGU Glass in ‘Jansen Janisol II’ and ‘Forster Fuegolight’ steel framed screens for periods of 30 minutes integrity and 30 minutes insulation consult the frame manufacturer for drawings of glazing system.

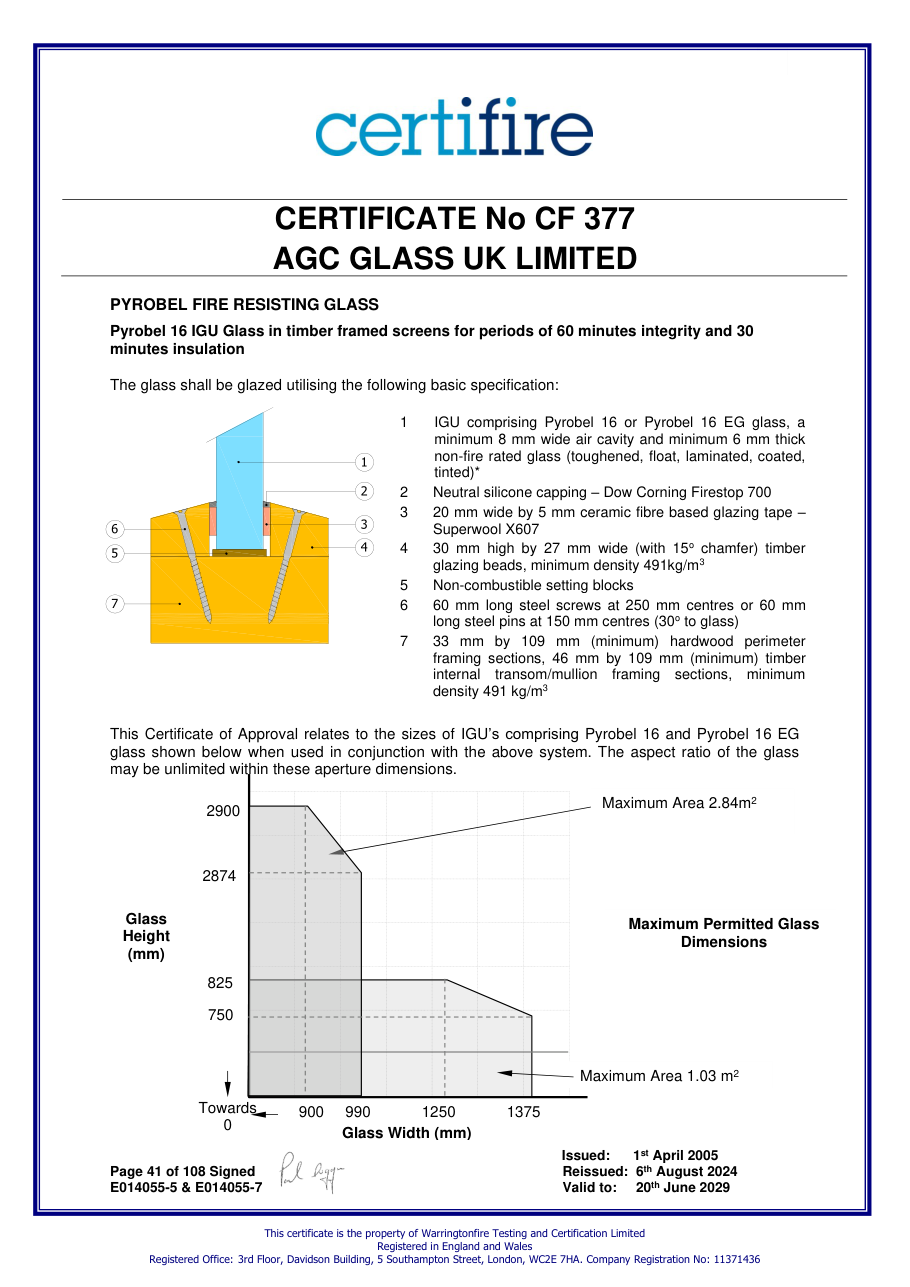

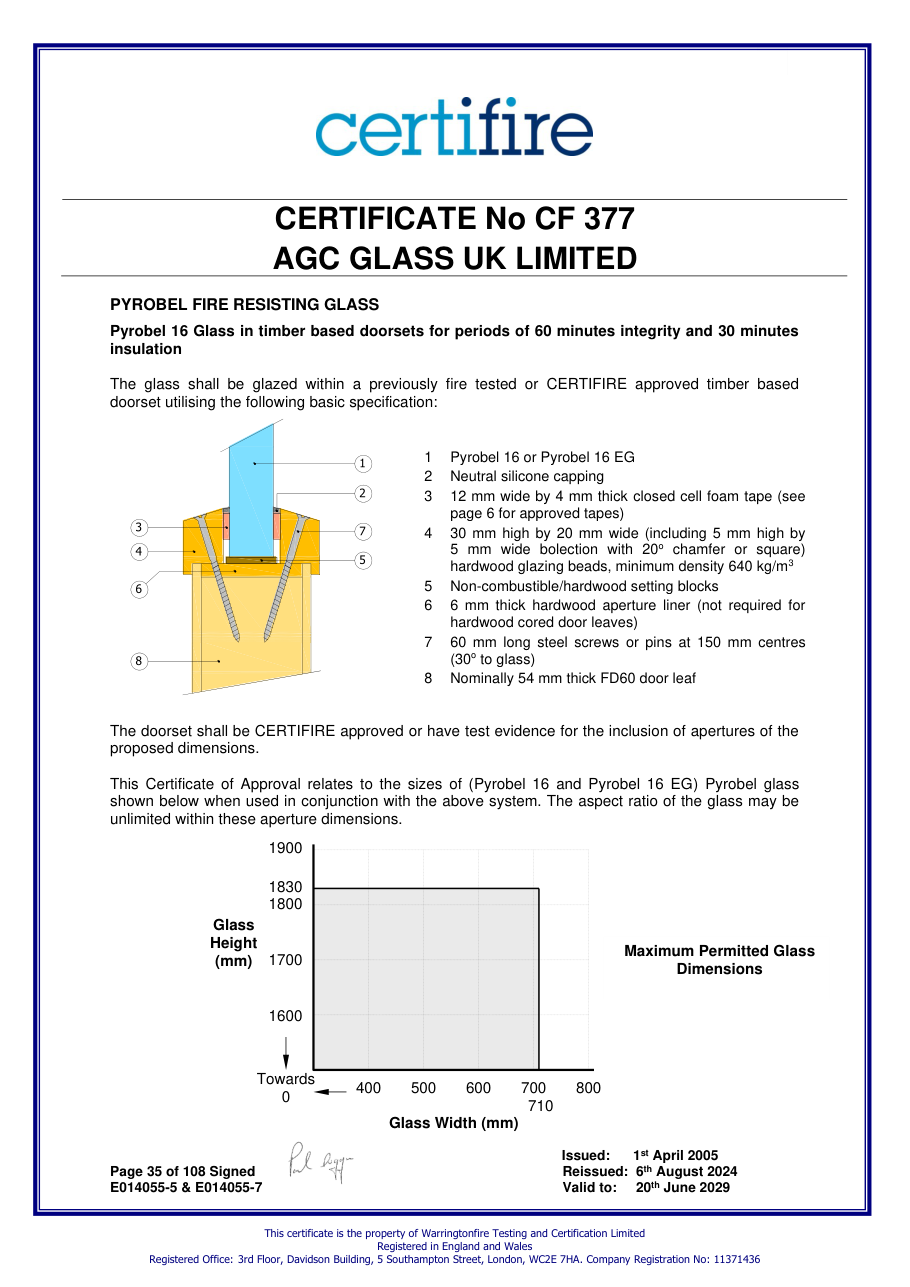

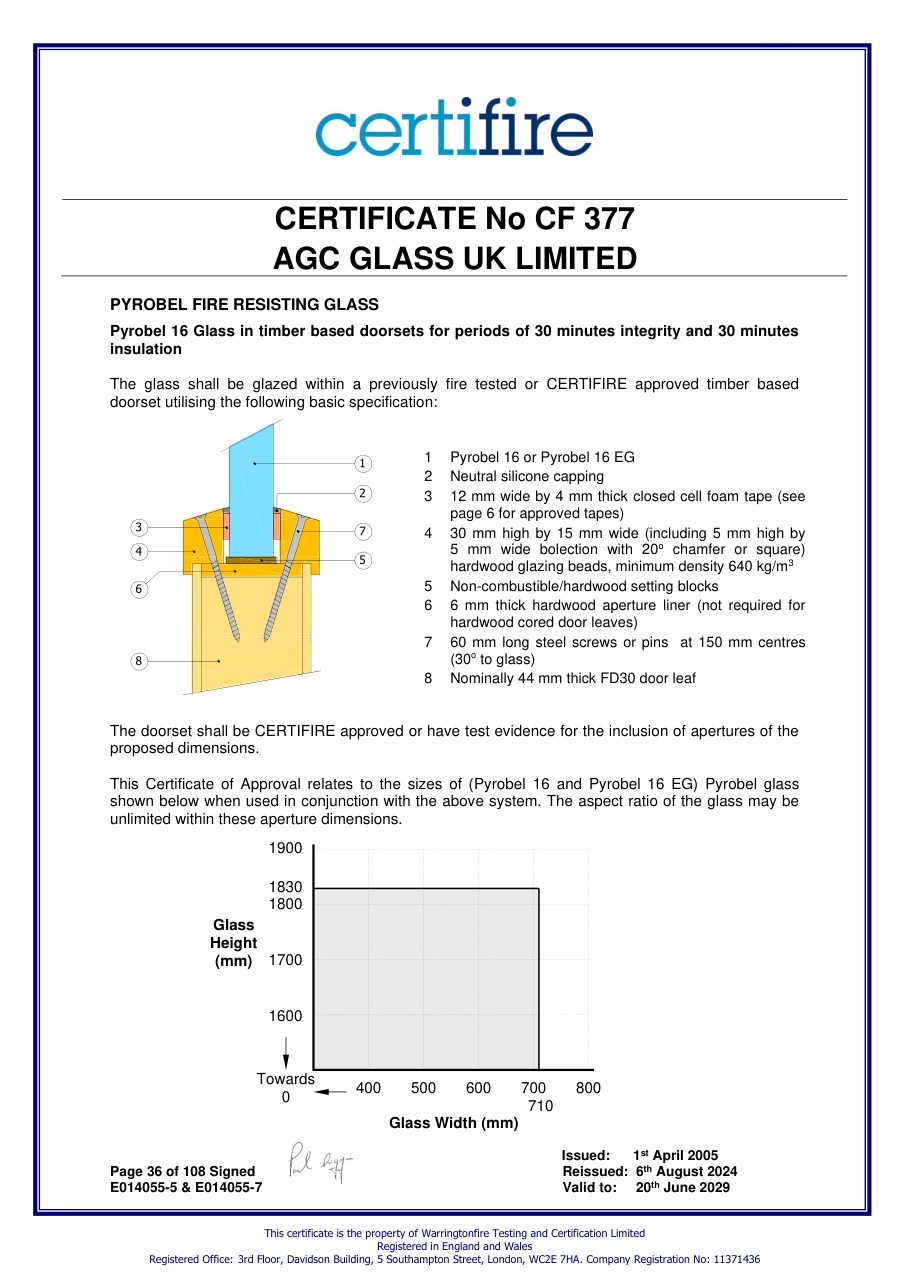

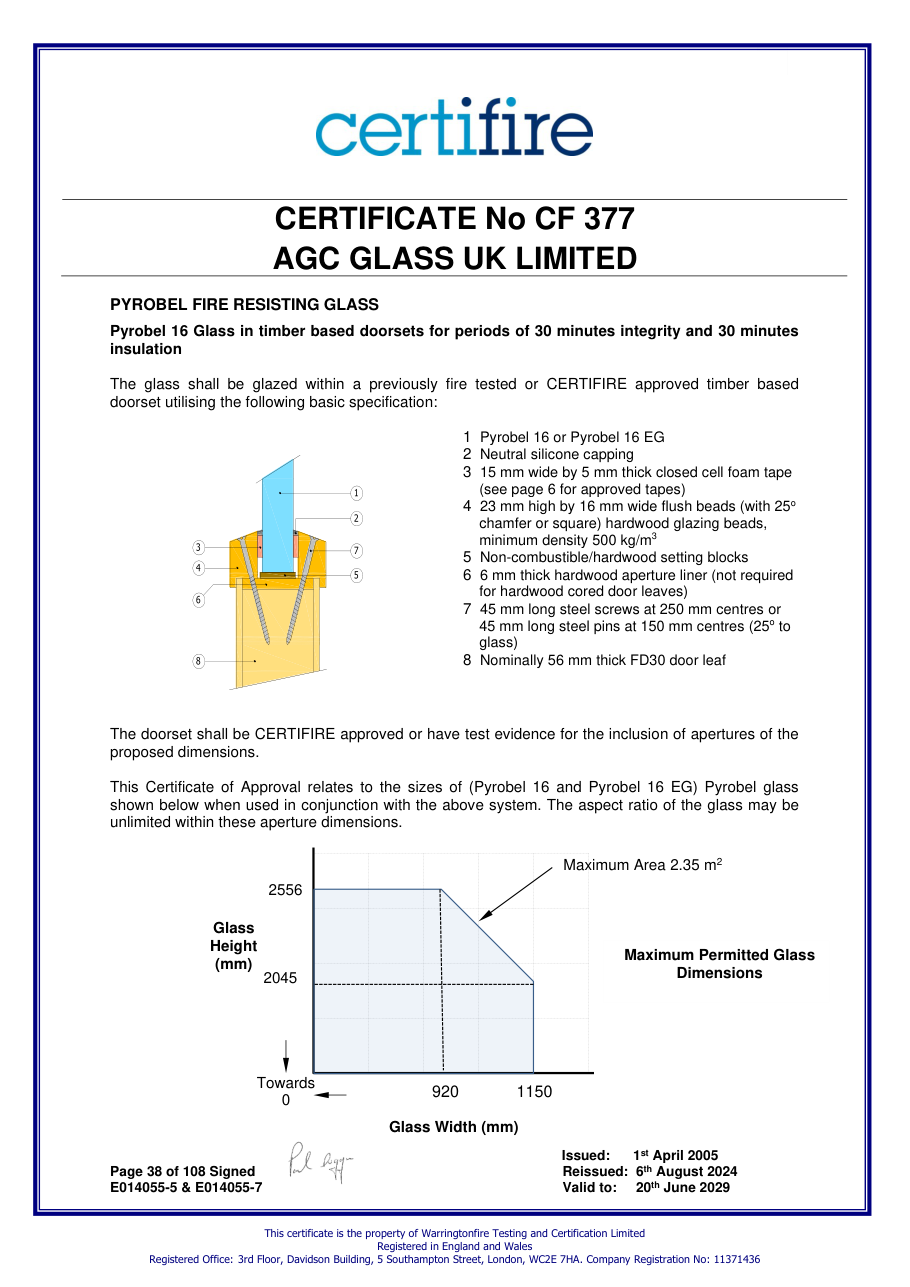

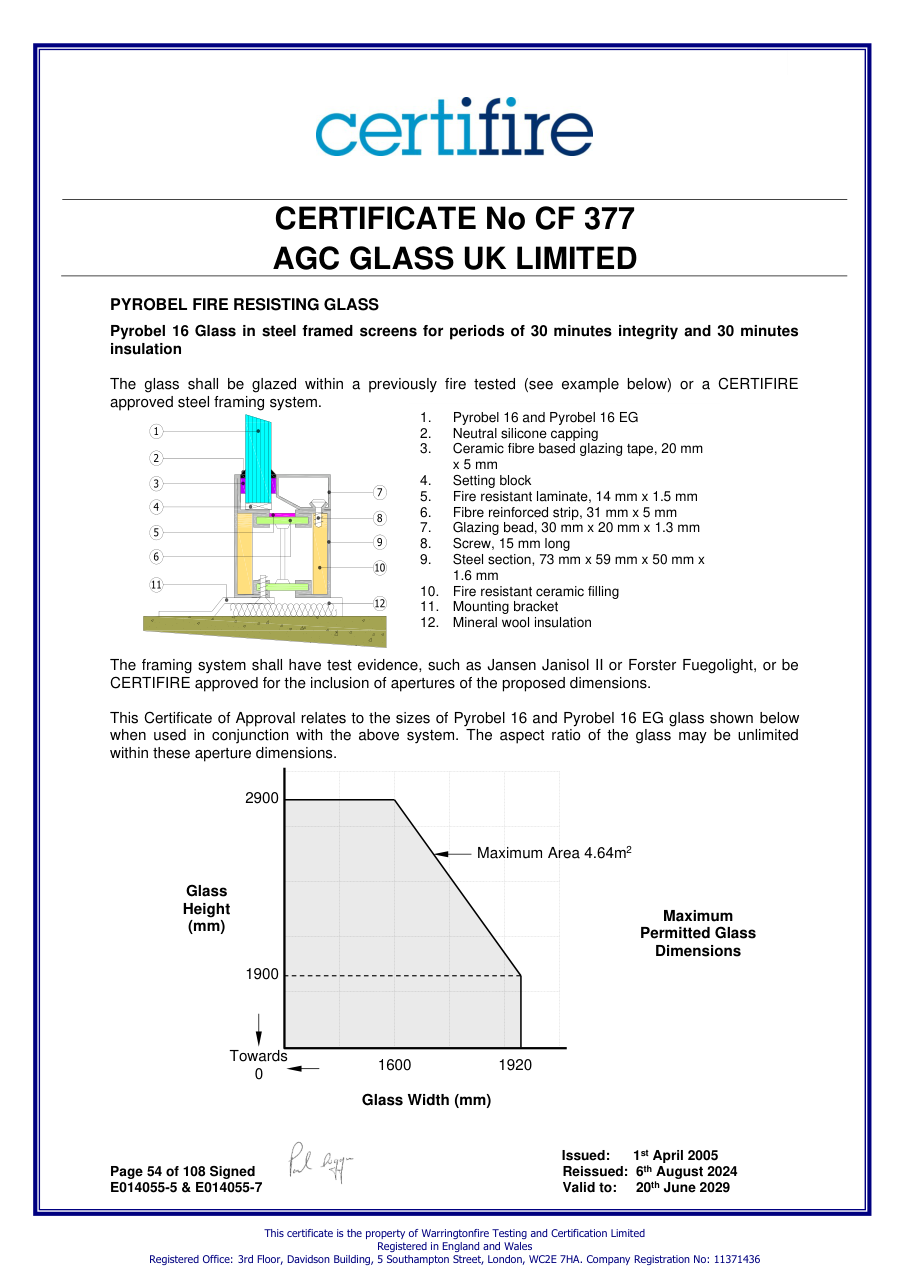

View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 20 Jun 2029; issuer status still requires checking
Application and assembly
Door · Steel · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
No dimension text recorded; consult the certificate.
Construction and conditions
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
30 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 20 Jun 2029; issuer status still requires checking
Application and assembly
Door · Timber · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions
No dimension text recorded; consult the certificate.

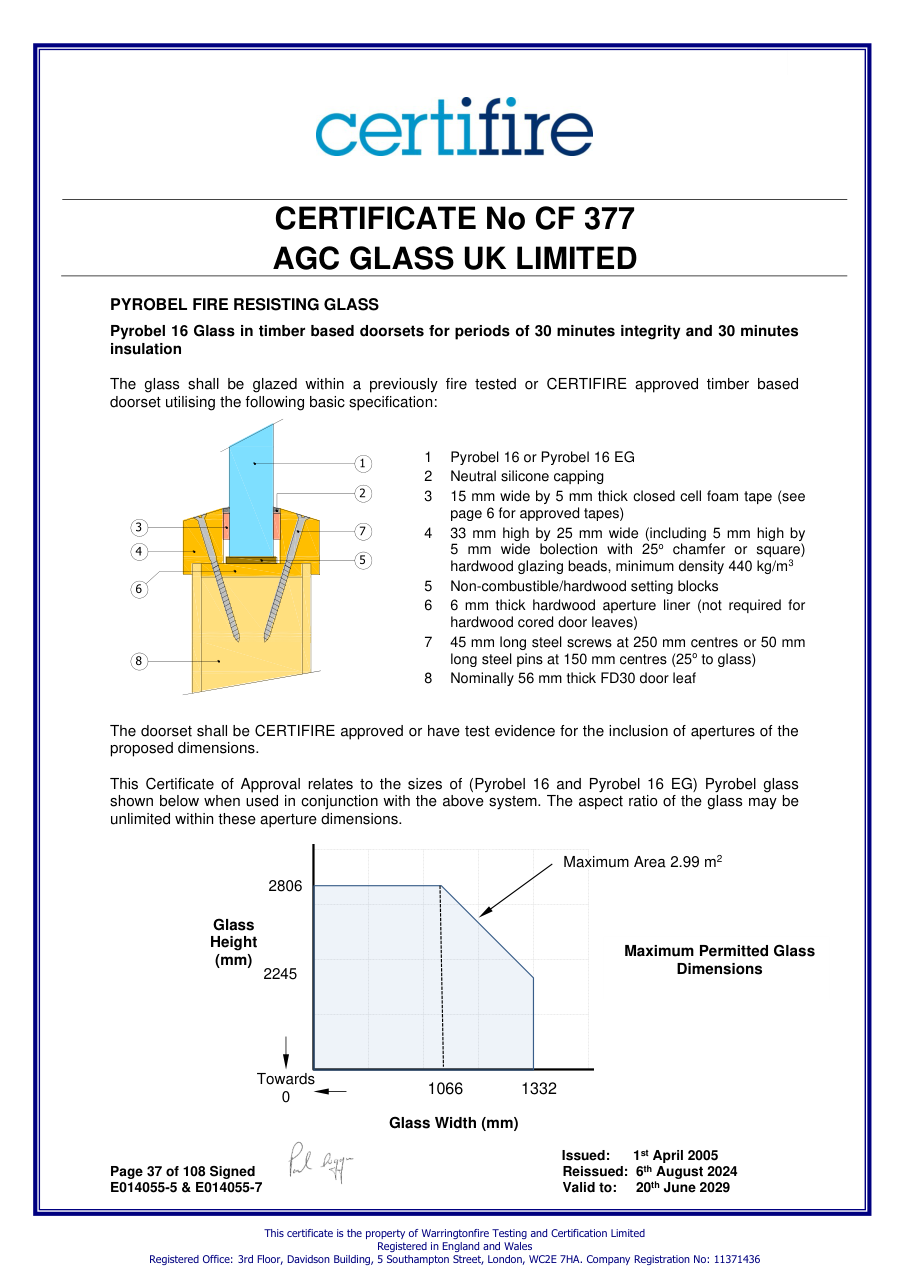

Recorded maximum area: 2.99m²
Construction and conditions
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
60 min integrity / 30 min insulation
Test regime / classification mapping needs verification
Within stated validity to 20 Jun 2029; issuer status still requires checking
Application and assembly
Screen · Timber · Single · Internal or External
Exact frame, seals, fixings and supporting assembly must be checked in the certificate.
Orientation needs verification · Fire direction needs verification
Recorded dimensions

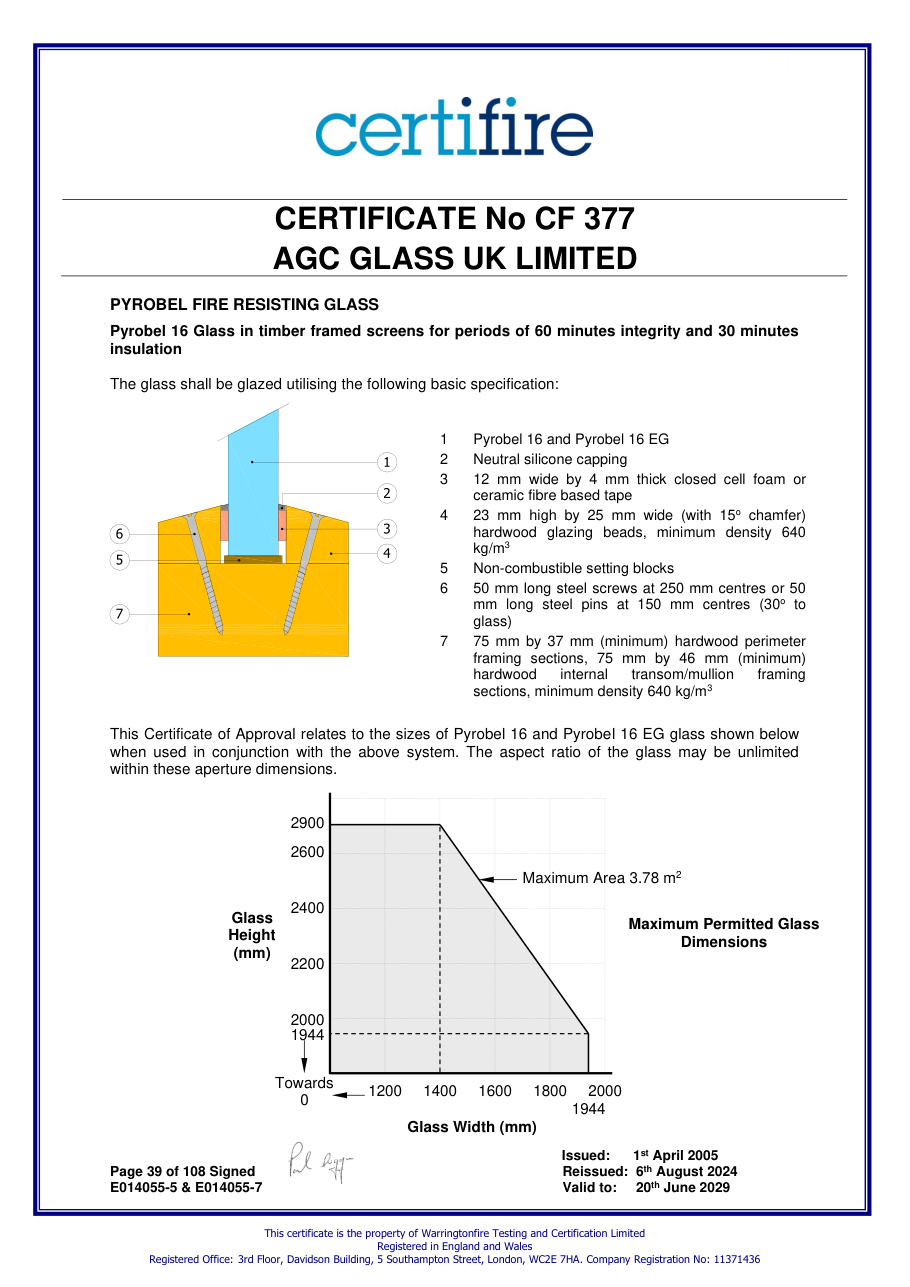

Maximum Area 3.78 m2 2900 1944 1 2 3 4 5 6 7 Maximum Permitted Glass Dimensions
Recorded maximum area: 3.78m²
Construction and conditions
- Pyrobel 16 and Pyrobel 16 EG
- Neutral silicone capping
- 12 mm wide by 4 mm thick closed cell foam or ceramic fibre based tape
- 23 mm high by 25 mm wide (with 15o chamfer) hardwood glazing beads, minimum density 640 kg/m3
- Non-combustible setting blocks
- 50 mm long steel screws at 250 mm centres or 50 mm long steel pins at 150 mm centres (30o to glass)
- 75 mm by 37 mm (minimum) hardwood perimeter framing sections, 75 mm by 46 mm (minimum) hardwood internal transom/mullion framing sections, minimum density 640 kg/m3
- Pyrobel 16 IGU Glass in timber framed screens for periods of 60 minutes integrity and 30 minutes insulation
- IGU comprising Pyrobel 16 or Pyrobel 16 EG glass, a minimum 8 mm wide air cavity and minimum 6 mm thick non-fire rated glass (toughened, float, laminated, coated, tinted)*
- Neutral silicone capping – Dow Corning Firestop 700
- 20 mm wide by 5 mm ceramic fibre based glazing tape – Superwool X607
- 30 mm high by 27 mm wide (with 15o chamfer) timber glazing beads, minimum density 491kg/m3
- 60 mm long steel screws at 250 mm centres or 60 mm long steel pins at 150 mm centres (30o to glass)
- 33 mm by 109 mm (minimum) hardwood perimeter framing sections, 46 mm by 109 mm (minimum) timber internal transom/mullion framing sections, minimum density 491 kg/m3
View recorded certificate page images
Snapshot images; consult the linked complete certificate for current conditions.
Other AGC Flatglass records
AGC Flatglass Pyrobel 16 & 16EG (DGUs)
CF377 · 1 recorded system options
Read product guide →AGC Flatglass Pyrobel 16 & 16EG (IGUs)
CF377 · 2 recorded system options
Read product guide →AGC Flatglass Pyrobel 16 & 16EG (Timber Screens)
CF377 · 1 recorded system options
Read product guide →AGC Flatglass Pyrobel 16
CF377 · 2 recorded system options
Read product guide →Description and application images
AGC Flatglass Pyrobel 16 & 16EG fire-rated glass cut to size: request made-to-measure panels, with sizes, framing and the complete glazing system confirmed by your supplier.
Suitable uses and specification limits
Discuss fire doors, screens or other applications against the matching system record. Supply the required performance, frame, internal/external location and specification if known.
Approval depends on the complete tested glazing assembly. Preserve each recorded width × height pair and orientation. Do not combine independent maxima or treat stock-sheet sizes as certified aperture limits. Current evidence must be confirmed.
Read the individual system records →Available shapes and glass options
Request the exact model and matching system record. Thickness, frame, location and performance belong to that record; alternatives require specialist review.
Current product: AGC Flatglass Pyrobel 16 & 16EG. Keep the glass type, treatment and thickness with every panel.
Choose options in the planner →Edge finishes and fabrication choices
Shapes, holes, cut-outs and edge treatments need the certificate holder or system specialist’s confirmation. General sheet-glass processing choices cannot be assumed for fire-rated glass.
Include the face, orientation and drawing reference for each panel. The quotation must confirm the processing, tolerances and charges before manufacture.
Measuring instructions
- Record the opening or aperture width and height and clearly identify which measurement you have taken. Let the system specialist establish the finished glass size and edge cover.
- Identify the door or screen system, framing, beads, seals, application, required performance and fire direction where known. Keep the system record reference with the drawing.
- Provide an overall photograph, close-ups of any labels and a dimensioned schedule. Obtain a supplier-approved final specification before manufacture or fitting.
Not sure of the finished size? Use a simple enquiry and request measuring or fitting advice. A photograph alone is not a manufacturing drawing.
